S41a rail is a type of rail used in railway rail construction. It complies with DIN5901 standard. S41 rail is usually used for heavy-load freight railways as well as high-speed passenger railways.
Kingrail Parts can provide high-quality and low-price S41a rails.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specifications:
| Type of light Rail | Standard | Dimensions mm | Section S | Mass m | ||||
|---|---|---|---|---|---|---|---|---|
| H | F | K | S | cm² | kg/m | |||
| European standard EN 13674-1 | ||||||||
| S41A | DIN 5901 | 138 | 125 | 67 | 12 | 52,53 | 41,24 | |

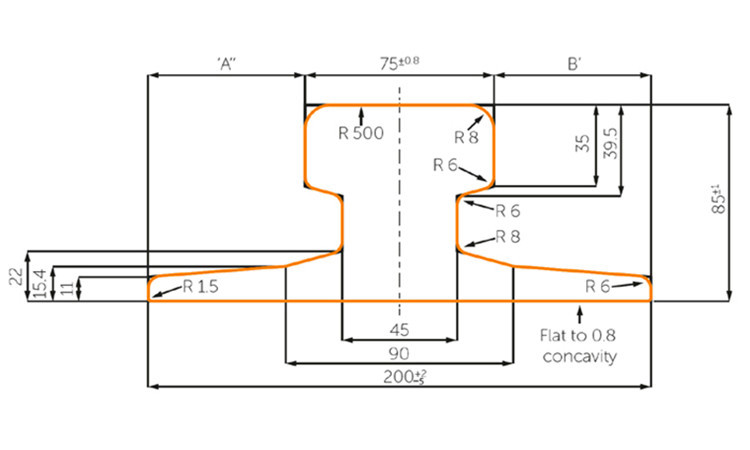

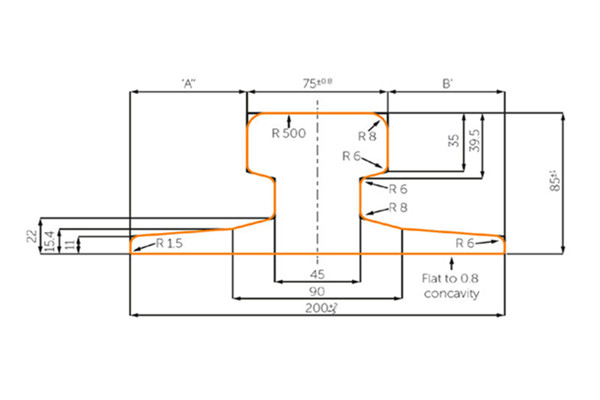

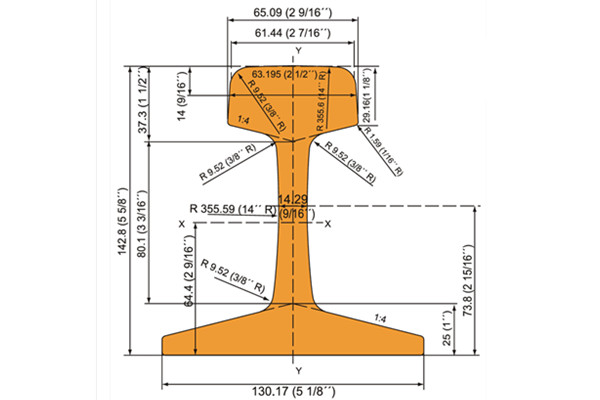

Drawings:
Contact Us
Please contact us for more information and quotes.
