BS70A rails are made to BS11-1985 and are used in mine railway lines or subways. They are made of 900A material, have a hardness greater than 880N/mm2 and can be 8-25 meters long.
BS70A rails are a common rail profile specification used in British and international railway applications.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
We can provide high quality BS70A rails, if you have any questions about BS70A rails, welcome to contact us.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specifications
|
Size |
Rail height(mm) |
Bottom Width(mm) |
Head Width(mm) |
Web Thickness(mm) |
Weight(kg/m) |
|
BS70A |
123.82 |
111.12 |
60.32 |
12.30 |
34.807 |

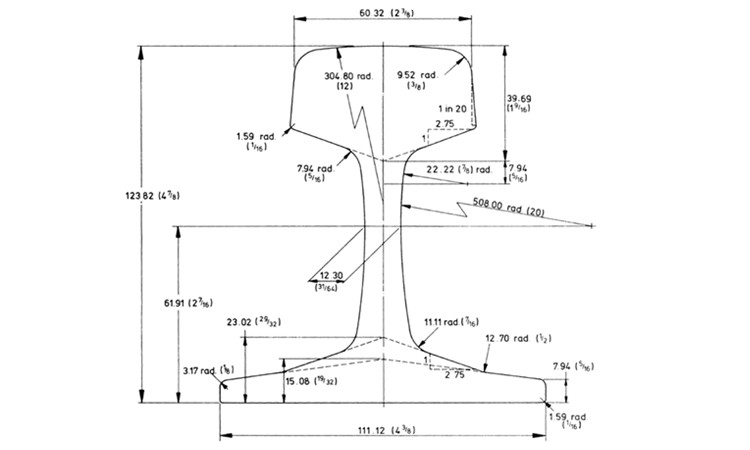

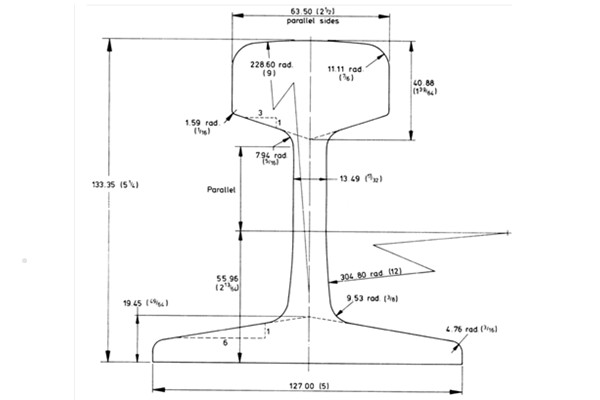

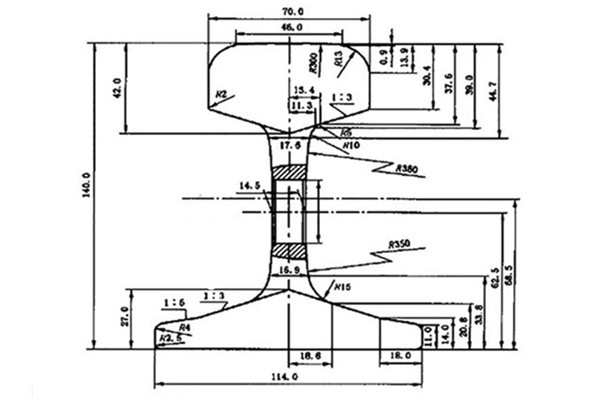

Drawings
For more information
Please contact us for more information and a quote.
