JIS 30kg 30A rails are mainly used for ground rails in factories and mine tunnels.
JIS standard rail is the standard crane track mainly used in the Japanese market.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
As a professional rail manufacturer, Kingrail Parts can supply high-quality, competitively priced JIS 30A rails.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specifications:
Type: Light Rail
Material: 55Q
Weight: 30.1kg/m
Standard: JIS E1103-93/JISE1101-93
Dimensions:
|
Model |
DIMENSION |
Weight |
Material |
Length |
|||
|
A(mm) |
B(mm) |
C(mm) |
t(mm) |
(KG/M) |
(m/PC) |
||
|
JIS 30A |
60.33 |
107.95 |
107.95 |
12.3 |
30.1 |
55Q |
9-10 |

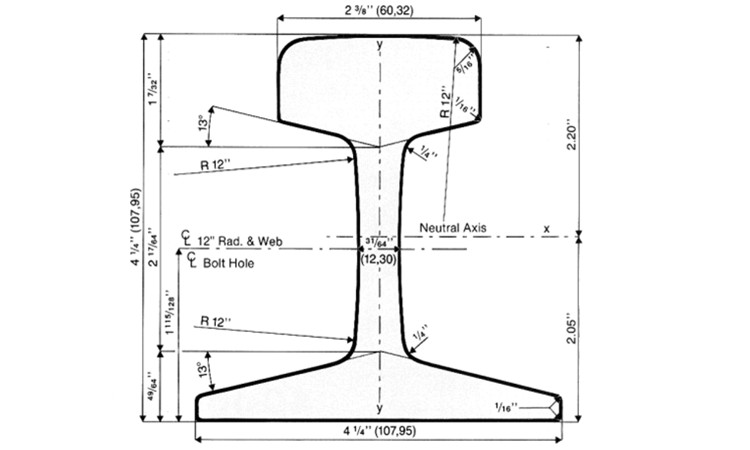

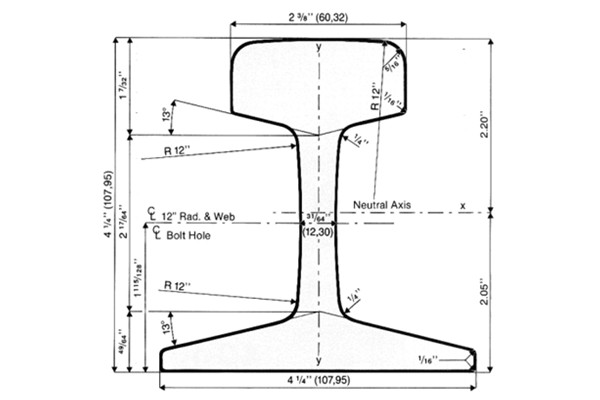

Drawings:
