54E3 Railway Rail (also known as S54) is a high-end heavy rail designed to meet the stringent requirements of European mainline railways, heavy-haul freight networks and industrial heavy-haul systems.
European standard rail is a common rail type, produced according to EN 13674-1-2003 standard. Usually, European standard rail is mainly made of R260/R350HT material. The specifications of European standard rail include: 49 E1, 50 E2, 50 E4, 54 E1, etc. The main length of European standard rail is 12-25 meters.
As a professional rail product manufacturer in China, Kingrail Parts can provide a variety of rails, including light rails, heavy rails, crane rails, and other rails of different standards and specifications, such as EN standard 54E3 S54 rails.
Specifications
|
Product Name |
54E3 Rail |
||||||
|
Standard |
EN 13674-1-2003 |
||||||
|
Model |
DIMENSION |
Weight |
Material |
Length |
|||
|
A(mm) |
B(mm) |
C(mm) |
t(mm) |
(KG/M) |
(m/PC) |
||
|
54E3 RAIL |
67 |
154 |
125 |
16 |
54.57 |
R260/R350HT |
12-25 |

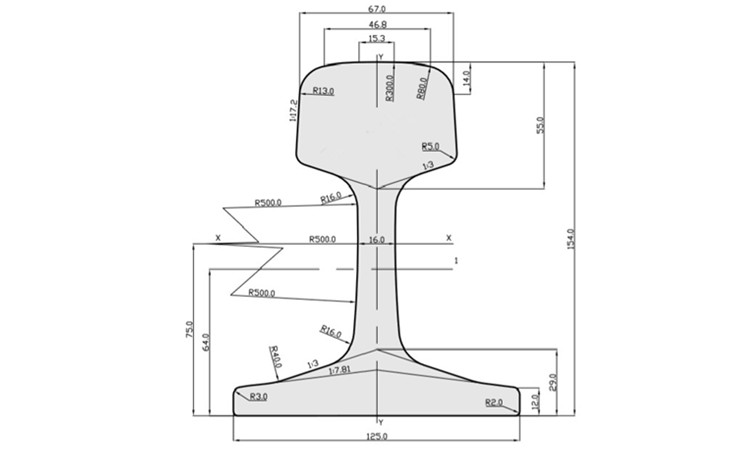

Drawings
