Kingrail Parts can supply and export 60KG Steel Rails with high quality and competitive price.
The 60kg rail requires sufficient strength and toughness. The 60kg rail is one of the heavy-duty rails. The 60kg rail consists of rail head, rail waist and rail bottom.
Applications: Hoisting machinery, power plants, railway rails
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification
| type | weight (kg/m) | material | length (m) |
| 60Kg | 60.80 | U71Mn/U75VX | 12m-25m |
| rail height (mm) | bottom width (mm) | head width (mm) | web thickness (mm) |
| 176 | 150 | 73 | 16.5 |

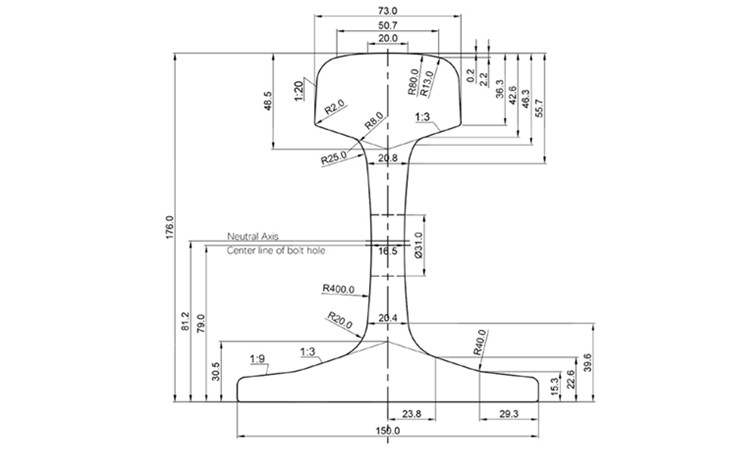

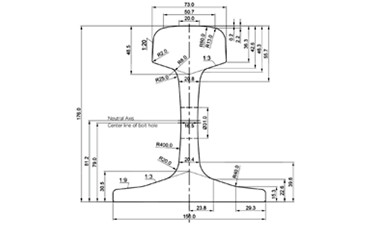

Drawing
