Kingrail Parts' light rail ASCE 85 is manufactured according to the American ASCE standard, with a mass of 42.17 kg per meter and 85 pounds per yard.
ASCE rail is a type of railroad track that complies with the specifications of the American Society of Civil Engineers (ASCE) and is commonly used in railway infrastructure projects in North America and other regions that follow ASCE standards.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
ASCE 85 rails are mainly used as crane rails, underground mining rails, factories, ports, railways, etc.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specifications:
Dimensions: ASCE 85 rails
Material: Q235B, 55Q, U71Mn
Standard: ASTM A1
Length: 12m~25m or other lengths as required by customers
Dimensions:
|
Size |
Rail Height(mm) |
Base Width(mm) |
Head Width(mm) |
Web Thickness(mm) |
Weight(kg/m) |
|
ASCE85 |
131.76 |
131.76 |
65.09 |
14.29 |
42.30 |

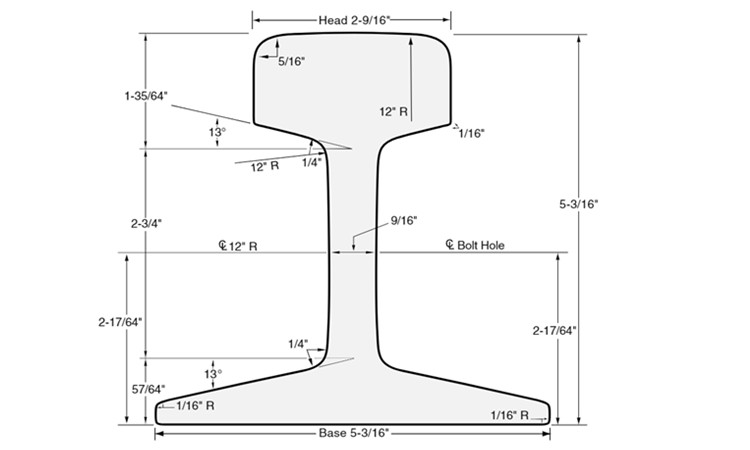

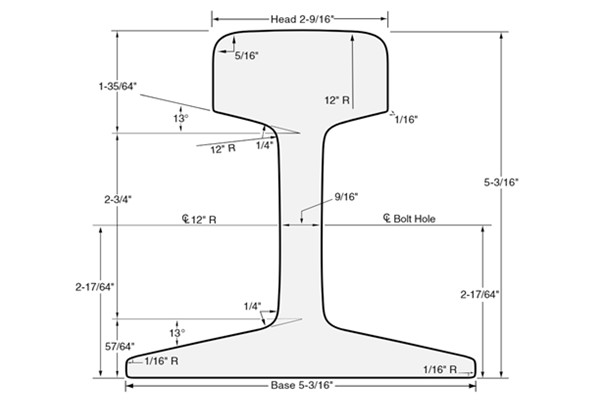

Drawings:
Get more help
Please contact us for more information and quotes.
