BS50 O Rail is a BS11-1985 standard rail for use on mining railway lines. It is made of 700 steel and has a hardness greater than 770N/mm2. It can be 6-18 meters long.
BS50 O Rail is a rail specification used in the British railway system and belongs to the BS50 series. Kingrail Parts can provide high-quality BS50 O Rail.
In general, BS50 O Rail is a common light rail type in the British railway system, suitable for lighter trains or lower strength environments, and meets the requirements of the BS11 standard.
Dimensions
|
Size * |
Rail height(mm) A |
Bottom Width(mm) B |
Head Width(mm) C |
Web Thickness(mm) t |
Weight(kg/m) * |
|
BS50 “O” |
100.01 |
100.01 |
52.39 |
10.32 |
24.833 |

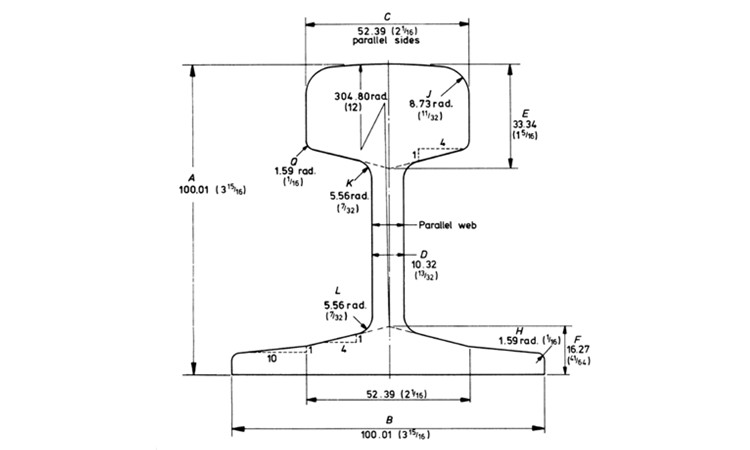

Drawings
