AREMA standard 90RA rail, also known as TR-45 (90 ARA-A) American standard rail, is widely used in the United States. AREMA TR45 rail is a 90 lb/yd rail. It is available in SS and HH. Lengths range from 12-25 meters (39 feet to 80 feet).
90RA rails are generally used in subways, mines, and factory rail lines.
Kingrail Parts is a trusted rail product manufacturer with more than 20 years of experience in providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and have established reliable partnerships with customers in more than 30 countries.
Kingrail Parts is a trusted professional rail supplier, we can produce rails that meet the US AREMA standard.
Custom Options
Rail Processing: Pre-drilled bolt holes, bevel cutting and welding services for quick installation.
Accessories: high-strength fishplates, anti-creep anchors and crane rail clamps provide a complete rail solution.
Specifications
|
Rail Type |
Height width (mm) |
Base width (mm) |
Head width (mm) |
Web thickness (mm) |
Weight Kg/m |
Material |
|
90 ARA-A |
142.88 |
130.18 |
65.09 |
14.29 |
44.65 |
900A/1100 |

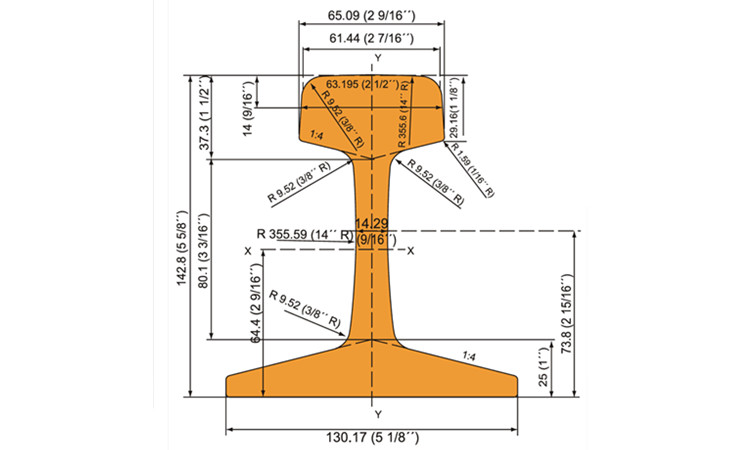

Drawings
