JIS 50kgN JIS 50N rails are mostly used for transportation in larger mine tunnels and factory workshops, crane lifting equipment and the laying of special railway lines.
JIS standard rail is the standard crane track mainly used in the Japanese market.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Kingrail Parts can supply various types of rails, including light rails, JIS standard rails such as JIS 50kgN, JIS 50N rails, JIS CR73 rails, heavy rails, crane rails of different standards and specifications.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification:
Type: heavy rail
Material: U71Mn
Weight: 50.4kg/m
Length: 10-25m
Standard: JIS E1103-93/JIS E1101-93
| Standard | JIS E1103-93/ JISE1101-93 | ||||||
| Model | DIMENSION | Weight | Material | Length | |||
| A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
| JIS 50N | 65 | 153 | 127 | 15 | 50.4 | U71Mn | 10-25 |

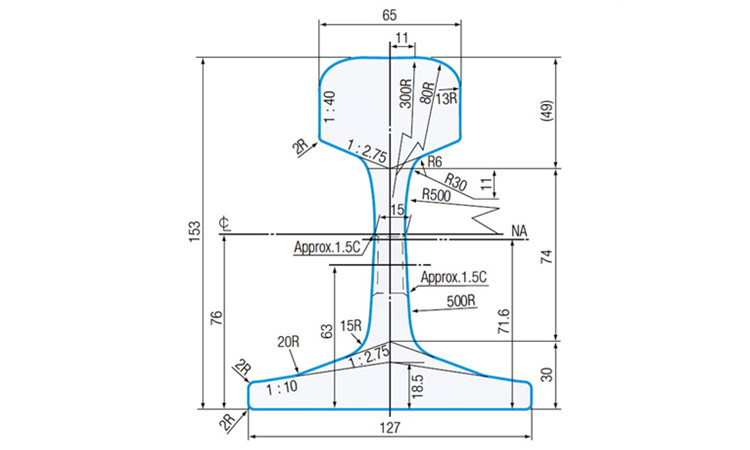

Drawing:
