ISCOR 40KG heavy rail is a heavy rail product produced according to ISCOR standards and using advanced metallurgical technology. The weight of 40 kg/m gives it strong rigidity and stability, and it can adapt to frequent train operation and harsh environmental conditions.
40KG steel has a larger cross-sectional size and a larger deadweight, which can withstand the huge pressure and impact of heavy-loaded trains. It is suitable for busy freight railways and lines with large axle weights or for mining lines.
Kingrail Parts is a trusted rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
As a professional rail product manufacturer in China, Kingrail Parts can provide a variety of rails, including heavy rails, such as 40 kg heavy rails, light rails, crane rails, with different standards and specifications.
Customization options
Rail processing: pre-drilling bolt holes, beveling and welding services for quick installation.
Accessories: high-strength fishplates, anti-creep anchors and crane rail clamps provide a complete rail solution.
Specifications
|
Product Name |
SA Standard Rails |
||||||
|
Standard |
ISCOR |
||||||
|
Model |
DIMENSION |
Weight |
Material |
Length |
|||
|
A(mm) |
B(mm) |
C(mm) |
t(mm) |
(KG/M) |
(m/PC) |
||
|
40 KG |
63.5 |
127 |
127 |
14 |
40.31 |
900A |
9-25 |

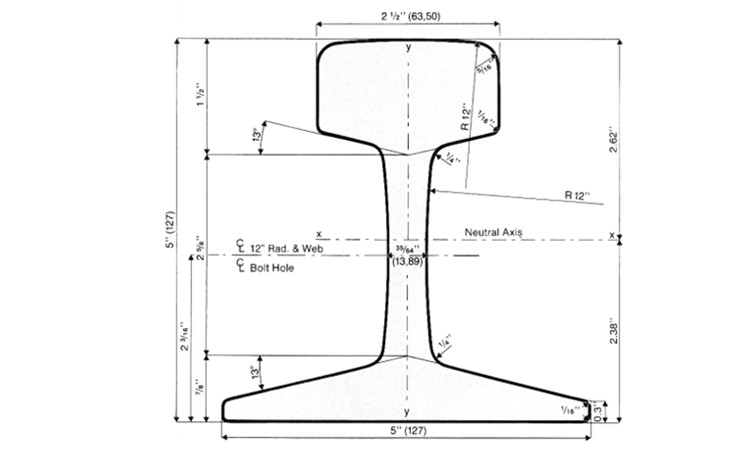

Drawings
Get more services
Please contact us for more information and quotation.
