Kingrail Parts' 60kg rail is a regular carbon steel rail. Length is 12-25 meters. Hardness is R260 or R350HT.
60kg rails are suitable for most networks as well as light freight and mining rail applications. Also suitable for crane rails, slipways, slides and workshop pads.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification
| type | weight (kg/m) | material | length (m) |
| 60Kg | 60.80 | U71Mn/U75VX | 12m-25m |
| rail height (mm) | bottom width (mm) | head width (mm) | web thickness (mm) |
| 176 | 150 | 73 | 16.5 |

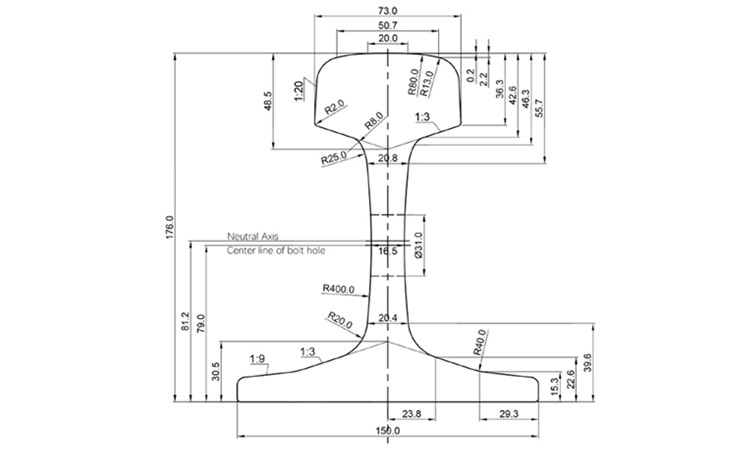

Drawing
