Kingrail Parts' 60kg HH rails are head-hardened rails, which gives them greater durability, is better suited to heavy axle loads and narrow radius curves, and helps extend the life of the rail network.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification:
Material: U71Mn/U75VX
Weight: 60.80Kg/m
Height: 174mm
Length: 12-25m
Standard: TB2344-2012
Safe load: 20-50 tons
Applications: Crane machinery, power plants, railway tracks
| Type | weight (kg/m) | material | length (m) |
| 60Kg | 60.80 | U71Mn/U75VX | 12m-25m |
| rail height (mm) | bottom width (mm) | head width (mm) | web thickness (mm) |
| 176 | 150 | 73 | 16.5 |

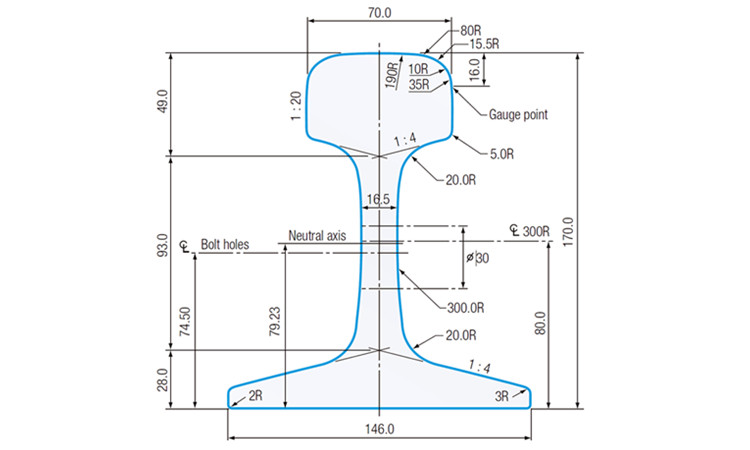

Drawing:
