KP70 crane rails are mainly used for bridge cranes in various factories, and are also used in ports, container yards, and shipyards.
Kingrail Parts' KP70 crane rails are produced according to YB/T5055-2014 standards. The material is U71Mn.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification:
Material: U71Mn
Length: 9-12m
Weight: 52.8Kg/m
Standard: YB/T5055-2014
Dimensions:
| Type | H(mm) | B(mm) | C(mm) | S(mm) | Theoretical Weght(KG/M) | Cross-sectional Area(cm2) | Material | Length(m) |
| KP70 | 120 | 120 | 70 | 28 | 52.80 | 67.30 |
U71Mn |
12 |

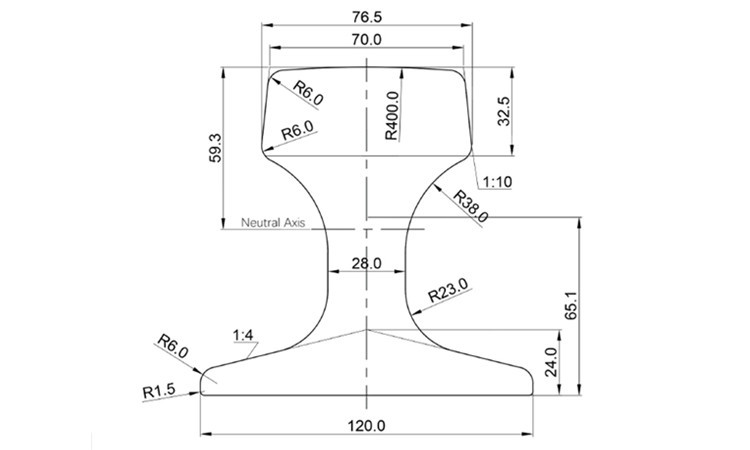

Drawing:
