BS50 O-shaped rails belong to the BS11-1985 standard and are used for mining railway lines.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Kingrail Parts can supply high quality BS50 O-rail. The material is 700. The hardness is greater than 770 N/mm2. Length can be 6-18 meters.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification:
Standard: BS11:1985
Material: 900A/700
Length: 6-25m
| Size | Head (mm) | Height (mm) | Base (mm) | Web (mm) | Nominal weight (kg/m) | Material | Length （m） |
| BS50 O Rail | 52.39 | 100.01 | 100.01 | 10.32 | 24.833 | 700 | 6-18 |

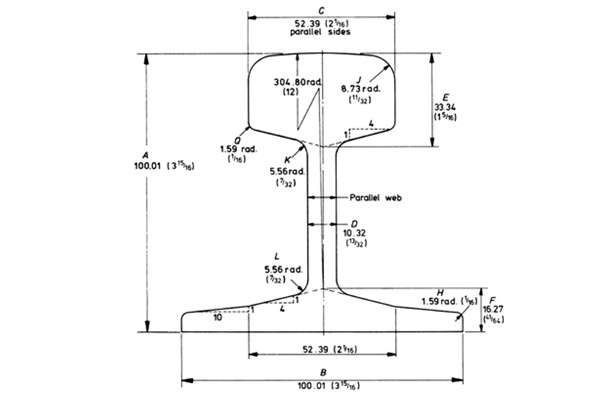

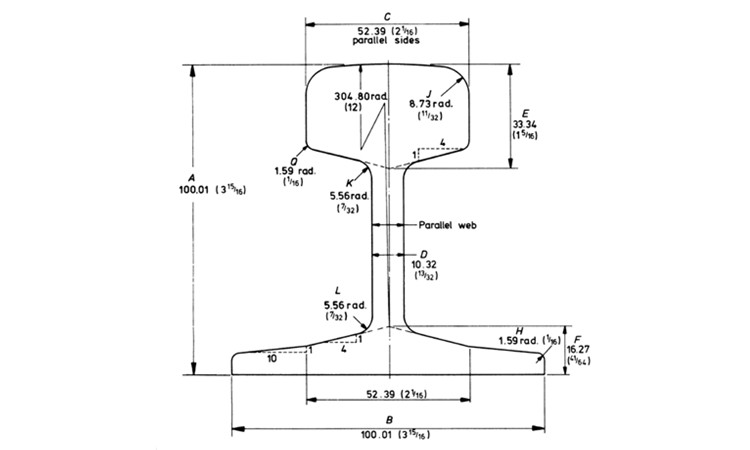

Drawing:
