Kingrail Parts' 53kg rail is a regular carbon steel rail. Hardness R260, length 12.5m to 25m.
53kg rails are suitable for most network as well as light freight and mining rail applications. Also suitable for crane rails, slipways, slides and workshop pads.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification:
Material: 50Mn/U71Mn
Weight: 53KG/M
Length: 12.5-25m
| MECHANICAL PROPERTIES | |
| STANDARD LENGTH: | 12.19m & 13.72m |
| CALCULATED MASS: | 53 kg/m |
| 0.2% Proof Stress MPa: | 420 |
| Tensile Strength MPa: | 880 |
| % Elongation Gauge Length = 5.65 √So | 8 |
| Surface Hardness H.B: | 260 |

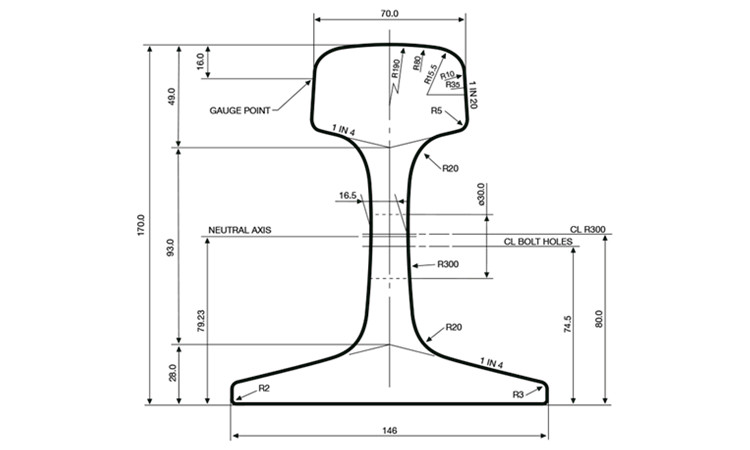

Drawing:
