The BS80A rail can be used for mining railway lines or subways. The material is 900A and the hardness is greater than 880N/mm2.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Kingrail Parts's BS80A (39E1) rails are manufactured in accordance with the European standard EN 13674-4. Weigh 39.77 kg per meter.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification
| Product Name | BS80ARAlL | ||||||
| Standard | BS11:1985 | ||||||
| Model | DIMENSION | Weight | Material | Length | |||
| A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
| BS80ARAlL | 63.5 | 133.35 | 117.47 | 13.1 | 39.761 | 900A | 8-25 |

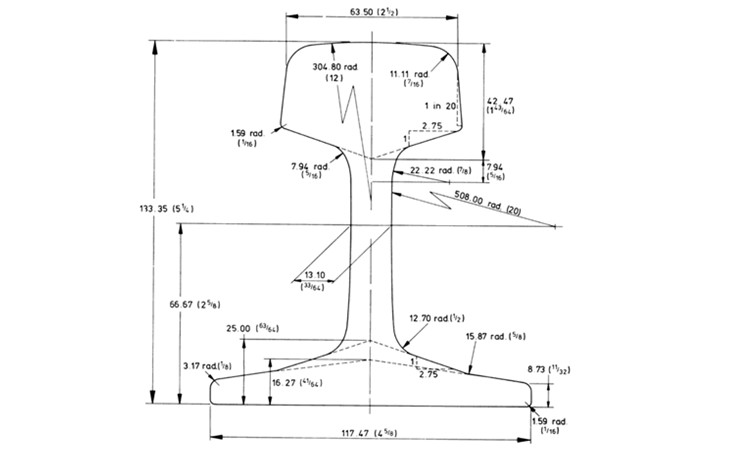

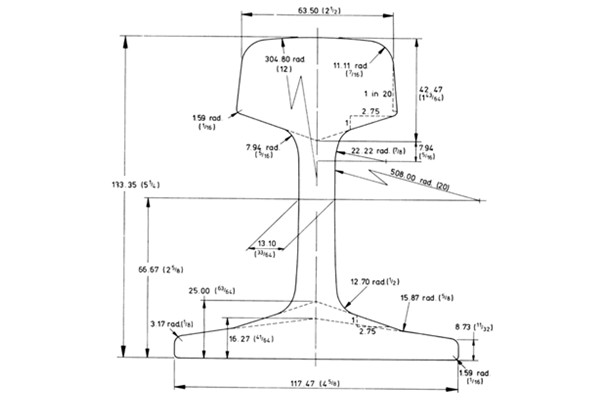

Drawing
Contact us
Please contact us to get more information and quotations.
