BS75R rails are mainly used for transportation in mine tunnels and factory workshops, transportation of lifting equipment, laying of railway dedicated lines, etc.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Kingrail Parts' BS75R rails are manufactured in accordance with British standards and are made of BS75R.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specifications
Specifications: BS75R
Material: 700, 900A
Standard: BS11
Length: 5-25m or other lengths as required by customers
Type | Dimension (mm) |
Weight (kg/m) |
Material |
Length (m) |
|||
Head | Height | Bottom | Web | ||||
BS 75R | 61.91 | 128.59 | 122.24 | 13.1 | 37.041 | 900A | 8-25 |

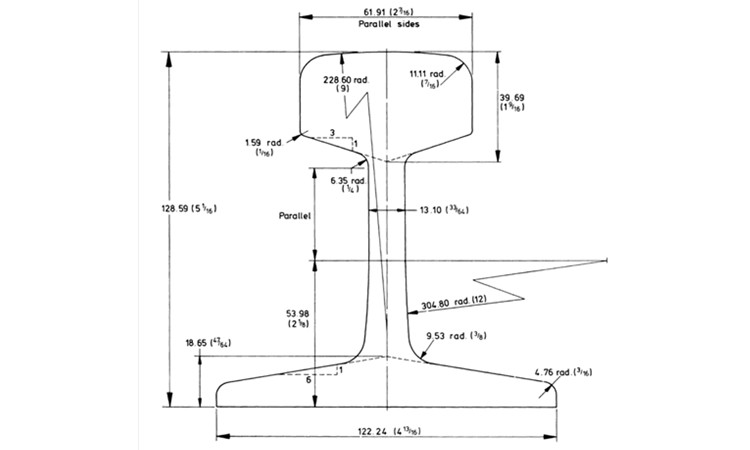

Drawings
Contact Us
Please contact us for more information and quotes.
