CR73 Rail Dimensions and Drawings

JIS CR73 rails are mostly used for transportation in larger mine tunnels and factory workshops, lifting equipment, and laying of railway dedicated lines. Cr73 rails are one of the heavy-duty rails.



Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.


As a professional rail product manufacturer in China, we can provide high-quality Japanese standard rails, such as cr73 rails.


Customization Options

Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.

Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.



Specifications

Type: CR73 rails

Material: U71Mn

Weight: 73.3kg/m

Standard: JIS E1103-93/JIS E1101-93



Dimensions

Standard

JIS E1103-93/ JISE1101-93

Model

DIMENSION

Weight

Material

Length

A(mm)

B(mm)

C(mm)

t(mm)

(KG/M)

(m/PC)

CR 73

100

135

140

32

73.3

U71Mn

10-12

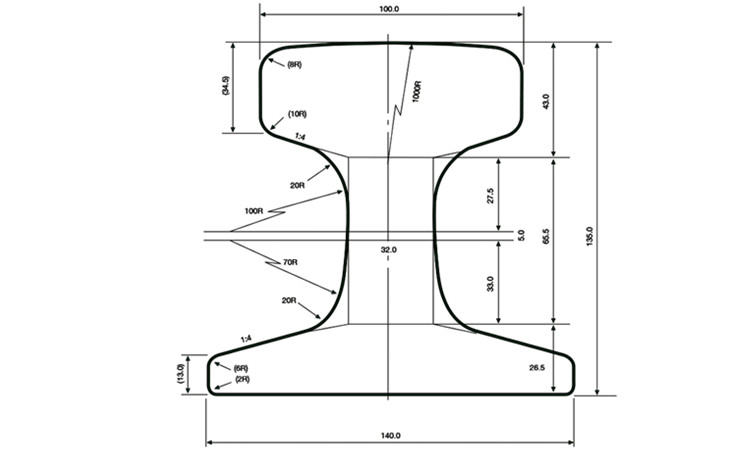

Drawings
