S10 rail is mainly used in factories, ports, railways, etc.
As a professional rail manufacturer, Kingrail Parts can provide high-quality and low-price S10 rail.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specifications
Size: S10 rail
Material: Q235B, 55Q
Standard: DIN5901
Length: 5-12m or other lengths as required by customers
|
Size |
Rail height(mm) |
Bottom Width(mm) |
Head Width(mm) |
Web Thickness(mm) |
Weight(kg/m) |
|
S10 |
70 |
58 |
32 |
6 |
10 |

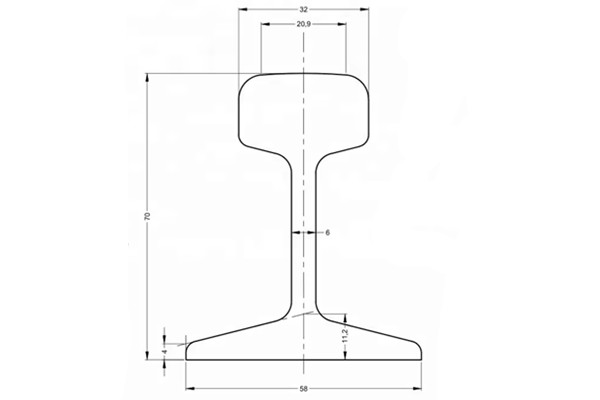

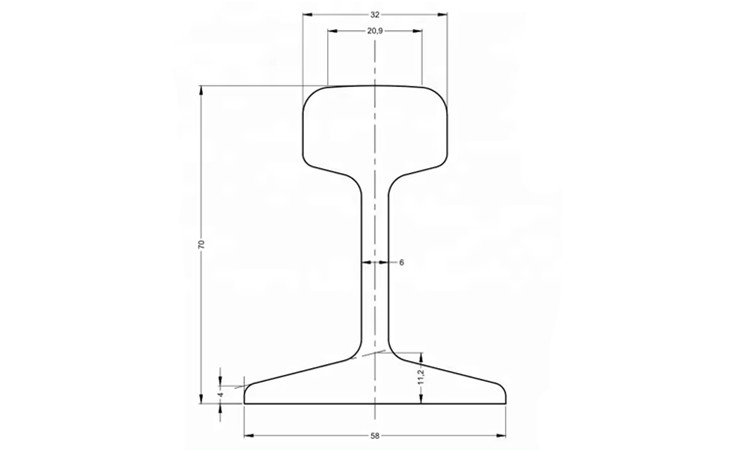

Drawing
