A75 rail is considered a small crane rail. It is the first choice of trollies. These rails are developed with a wide short web, which can withstand large loads compared with the head size.
Standard A75 crane rails are rolled according to DIN 536-1. Their length can reach 24 meters and the grade is 690 and 880 n/mm.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification:
| A75 Rail Parameters | |||
| Rail Type | Weight(Kg/m) | Material | Length(m) |
| A75 | 56.2 | 700/900A/1100 | 10-12 |
| Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
| 75 | 200 | 85 | 45 |

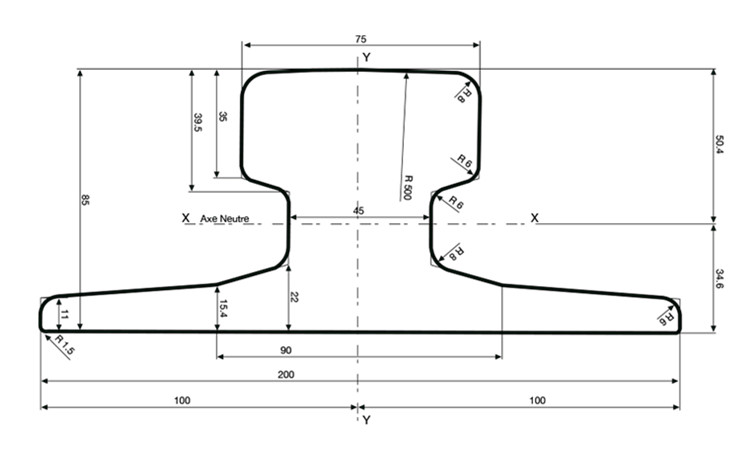

Drawing:
