The crane rail A120 is manufactured according to the European standard DIN 536 P1: 1991, the mass is 100 kg/m
A variety of applications such as trolley rails, crane rail, mining rails, car-dumpers, etc
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Dimensions:
| Profile | Standard | Dimensions mm | Section S | Mass m | |||
|---|---|---|---|---|---|---|---|
| H | B | C | E | cm² | kg/m | ||
| A120 | DIN 536 | 105 | 220 | 120 | 72 | 127,40 | 100,00 |

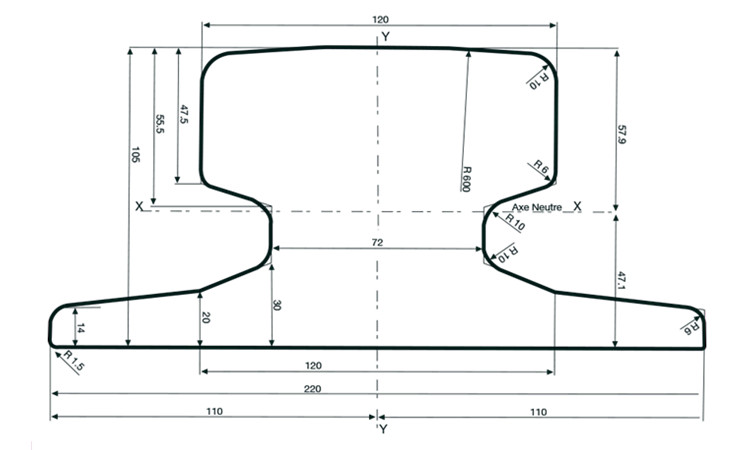

Drawing:
