54E1 (UIC54) rail model manufactured according to European standard EN 13674-1. It is used in railway construction. This is a T-rail (flat-bottomed rail) with a mass of 54.77 kg per meter. Standard rails use 54E1/UIC54 rails for medium and heavy load traffic.
Kingrail Parts can provide high quality and low unit price UIC54 rail.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
UIC 54 Rail Dimensions:
| Type of Rail | Standard | Dimensions (mm) | Section S | Mass m | ||||
| H | B | C | D | E | cm² | kg/m | ||
| European standard EN 13674-1 | ||||||||
| 54E1 (UIC54) | EN 13674 - 1 | 159,00 | 140,00 | 70,00 | 49,40 | 16,00 | 68,77 | 54,77 |
UIC 54 Rail Mechanical Properties:
| Standard | Steel Grades | Mechanical Properties | ||
| Rm MPa | min A5 % | HB | ||
| EN 13674 - 1 (2006) | ||||
| R200 |
min 680 |
14 | 200 - 240 | |
| R260 |
min 880 |
10 | 260 - 300 | |
| R260 MN |
min 880 |
10 | 260 - 300 | |
| R350 HT |
min 1175 |
9 | 350 - 390 | |

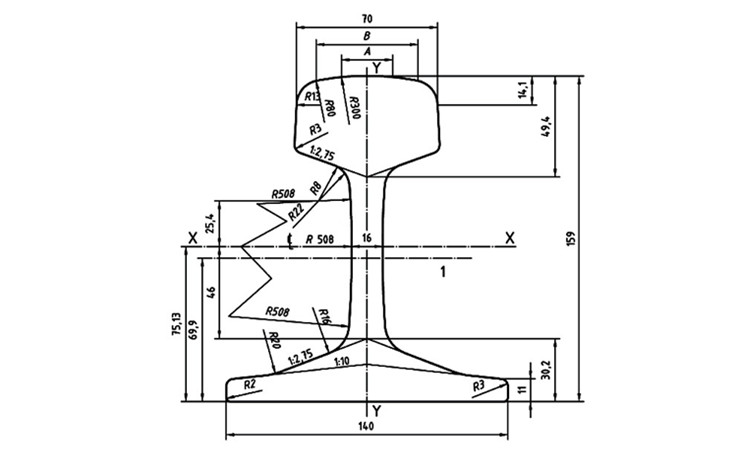

Drawing:
