UIC60 rail is manufactured according to the rules set by the International Union of Railways. To be more specific, this type of rail uses the European Standard EN 13674-1. This European standard is for railroad rails of 46 kg/m and greater weight for railroad tracks.
Nine pearlitic steel grades, ranging in hardness from 200 HBW to 440 HBW, are specified, including none heat-treated none alloy steels, none heat-treated alloy steels, heat-treated none alloy steels, and heat-treated alloy steels.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification:
Size: 60E1 UIC60 rail
Material: R200, R260, R260MN, R350HT
Standard: EN 13674-4
Hardness: R260, R320
Length: 5m~25m or other length according to customers’ requirement
| Size | Dimension | Weight (kg/m) | Material | Length (m) | |||
| Head (mm) | Height (mm) | Base | Web | ||||
| UIC60 | 72 | 172 | 150 | 16.5 | 60.21 | 900A/1100 | 12-25 |

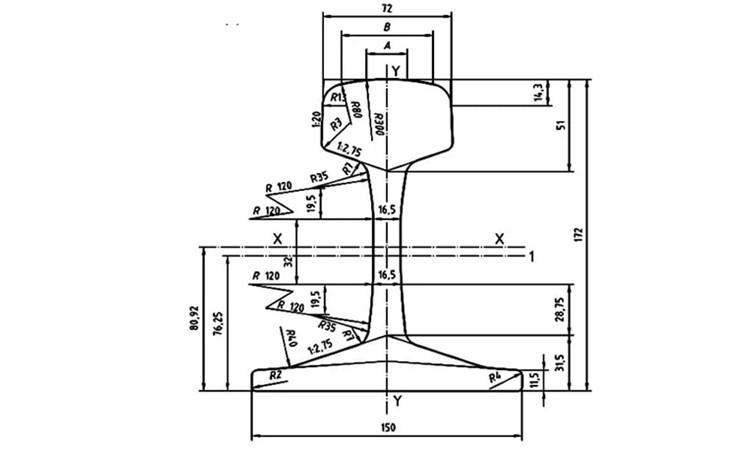

Drawing:
Contact us
Please contact us for more information and quotations.
