UIC60 rails are manufactured according to the rules set by the International Union of Railways. More specifically, this type of rail follows the European standard EN 13674-1.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Kingrail Parts offers uic60 rails of high quality and competitive prices.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification:
Type: UIC60 rail
Material: 900A/1100
Weight: 60.21kg/m
Length: 12-25m
Standard: UIC860-O
| Model | DIMENSION | Weight | Material | Length | |||
| A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
| UIC 60 | 74.3 | 172 | 150 | 16.5 | 60.21 | 900A/1100 | 12-25 |

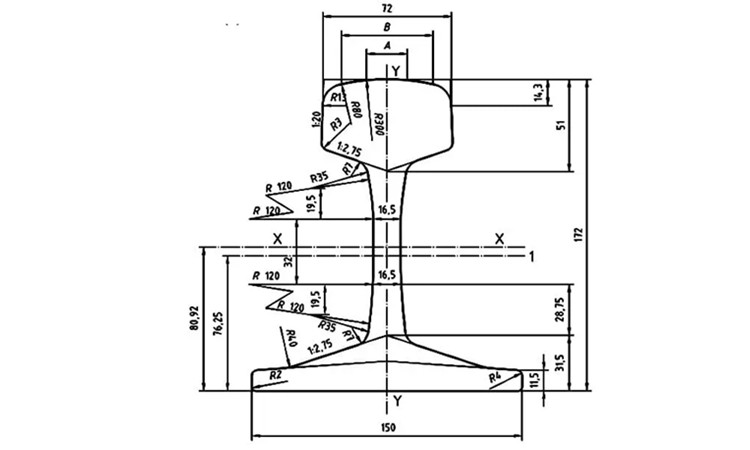

Drawing:
