47kg rails are suitable for most network as well as light freight and mining rail applications. Also suitable for crane tracks, slipways, slides and workshop concrete pads.
Kingrail Parts can produce a variety of rails, including light rails, heavy rails (47kg rails), crane rails, and other rail specifications.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification:
| MECHANICAL PROPERTIES | |
| Tensile Strength N/mm2: | 700 |
| STANDARD LENGTH: | 12.00m |
| ELONGATION (%): | 8 min. |
| CALCULATED MASS: | 46.5 kg/m |
| AREA: | 191.4cm2 |
| SECTION MODULUS – FOOT: |
269.1 x 103 mm3
|
| SECTION MODULUS – HEAD: |
253.5 x 103 mm3
|

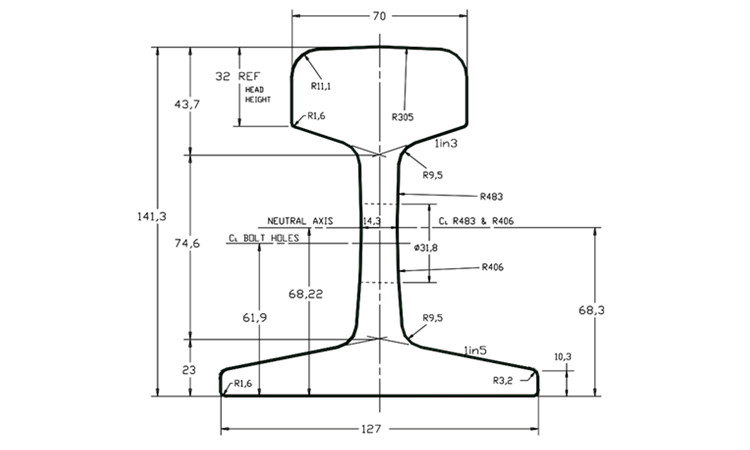

Drawing:
