53kg rails are suitable for most network as well as light freight and mining rail applications. Also suitable for crane rails, slipways, slides and workshop pads.
Kingrail Parts can provide a variety of rails, including light rail, heavy rail (53kg rail), and crane rails of various specifications.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification:
Material: 50Mn/U71Mn
Weight: 53KG/M
Length: 12.5-25m
| Rail Type | Weight(Kg/m) | Material | Length(m) |
| 53kg | 53.14 | 50Mn/U7Mn | 12.5-25 |
| Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
| 70 | 132 | 152 | 15.5 |

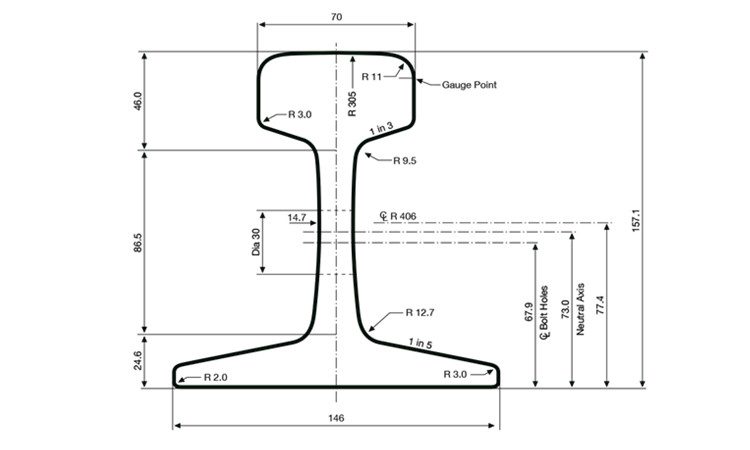

Drawing:
