ASCE rail usually refers to American standard rail, as defined by the American Society of Civil Engineers.
25lb asce rails are manufactured to ASTM A1 standards.
25lb asce rail is widely used in railway rails in North America. Usually, it is used for temporary transportation tracks in forest areas, mines, construction areas, etc.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification:
Type: Light Rail
Material: 700
Weight: 12.4kg/m
Length: 6-12m
Standard: ASTM A1/AREMA
Dimensions:
| Standard | ASTM A1/AREMA | ||||||
| Model | DIMENSION | Weight | Material | Length | |||
| A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
| ASCE 25 | 38.1 | 69.85 | 69.85 | 7.54 | 12.4 | 700 | 6-12 |

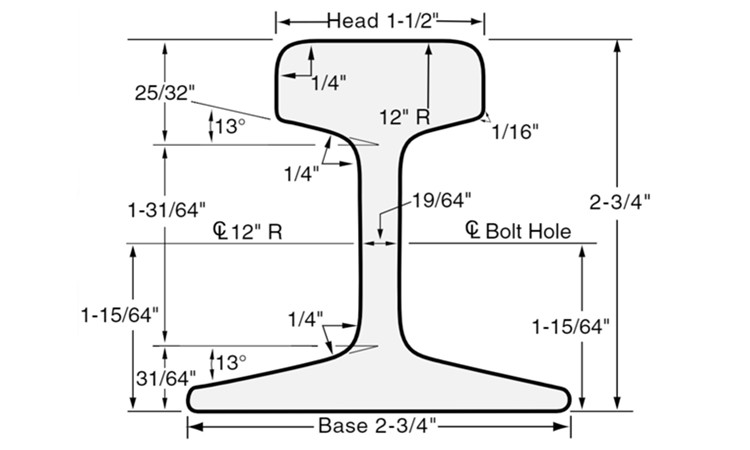

Drawing:
