Kingrail Parts' BS60A rails are manufactured to BS11-1985 standards.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Our BS60A rails are generally used in mining railway lines or subways, etc. The material is 900A, the hardness is greater than 880 N/mm2, and the length can be 6-12 meters.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification:
Material: 700, 900A
Standard: BS11
Length: 6-12m or other lengths according to customer requirements
| size | Dimension(mm) |
weight (kglm) |
Material | Length (m) | |||
| Head(mm) | Height(mm) | Bottom(mm) | web(mm) | ||||
| 60 A | 57.15 | 114.3 | 109.54 | 11.11 | 30.618 | 900A | 6-18 |

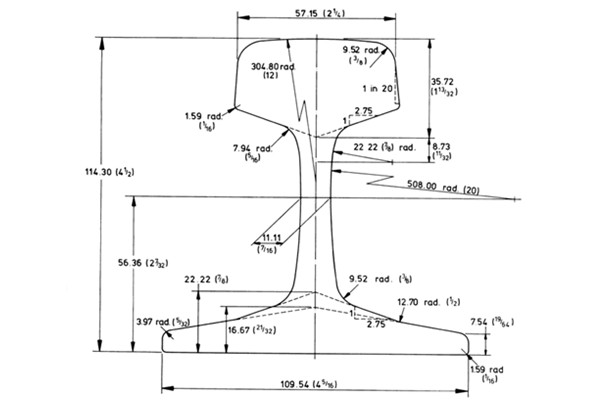

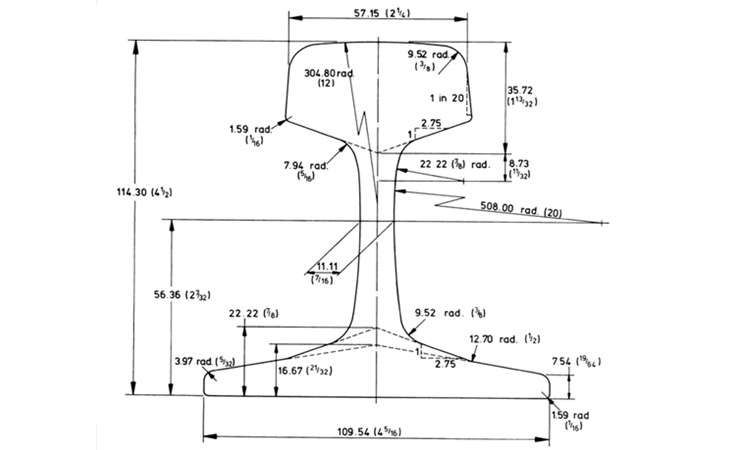

Drawing:
