S18 rail is used in small train railway lines, mine tunnels, railway tracks, factories, ports, crane industries, etc.
Kingrail Parts can provide various light rails, including S14 light rail, S18 light rail, S20 light rail, S24 light rail, S30 light rail, etc.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification:
Type: Light Rail
Material: 55Q
Weight: 18.3kg/m
Standard: DIN5901:1955-11
| Model | DIMENSION | Weight | Material | Length | |||
| A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
| S18 | 43 | 93 | 82 | 10 | 18.3 | 55Q | 6-12 |

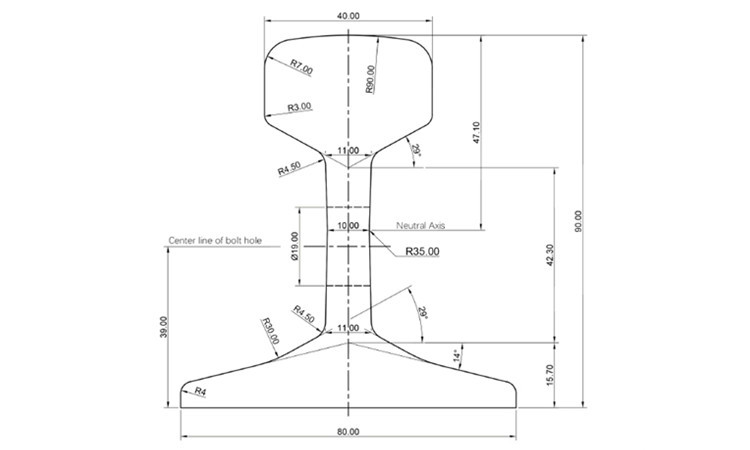

Drawing:
