BS70A rails belong to the BS11-1985 standard and are used for mining railway lines or subways.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Kingrail Parts can supply various types of rails, including light rails, BS standard rails, BS70A rails, heavy rails, and crane rails of different standards and specifications.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Dimensions:
|
|
Rail Height | Flange Width | Head Width at Top | Head Width at Base | Head Height | Web Thickness | Flange Thickness at Edge | Flange Thickness at Center | Weight (per meter) | cm | cm4 | cm4 |
| Rail Type | RH | FW | HT | HB | HH | WT | FE | FM | kg | Y | lxx | lyy |
| BS 70A rail | 123.8 | 111.1 | 60.3 | 62.23 | 28.5 | 12.3 | 7.9 | 15.08 | 34.81 | 62.5 | 911 |

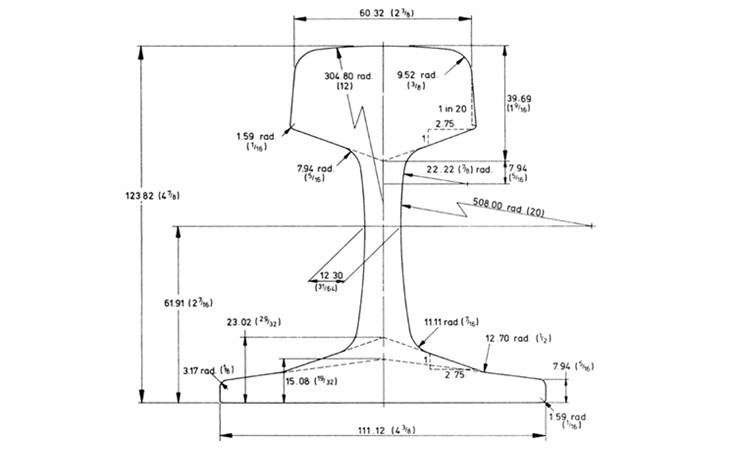

Drawing:
