JIS 22kg rails are mainly used for ground rails in factories and mine tunnels.
JIS standard rail is the standard crane track mainly used in the Japanese market.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
As a professional rail manufacturer, Kingrail Parts can supply high-quality, competitively priced jis 22kg rails.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specifications:
| Size | Rail height(mm) | Bottom Width(mm) | Head Width(mm) | Web Thickness(mm) | Weight(kg/m) |
| 22kg | 93.66 | 93.66 | 50.80 | 10.72 | 22.30 |

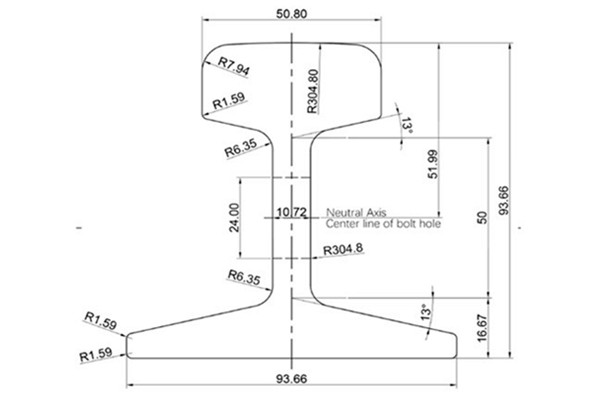

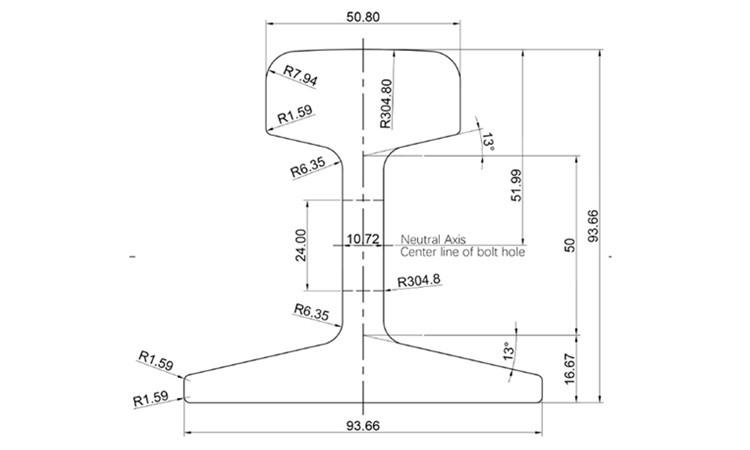

Drawings:
Contact Us
Please contact us for more information and quotes.
