4kg/m rail is used for amusement park trains. The unit weight is 4.3kg/m. It is produced by 8kg/m rail rollers, that is, the height dimension is the same as 8kg/m rail, but the width will be reduced.

Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.

As a professional rail manufacturer, Kingrail Parts can produce various light rails, heavy rails, and crane rails. Such as: 4kg rail.

Customization Options

Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.

Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.

Specifications

Dimensions: 4kg Rail

Weight: 4.3kg/m

Length: 6m

Material: Q235

Rail Height: 65mm

Bottom Width: 54mm

Web Thickness: 7mm

Head Width: 25mm

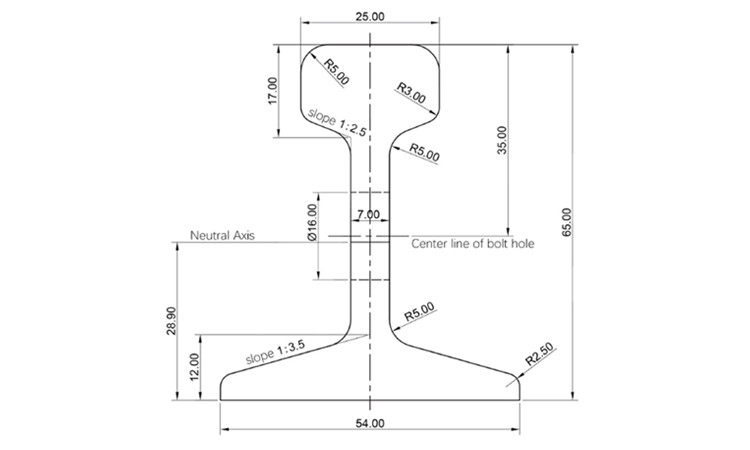

Drawings
