ASCE 60 Rail Dimensions in Inches and Drawings

60-pound rails are generally used for light freight or light rail transit lines, but can also be used for less commonly used rails.



ASCE rail is a type of railroad track that complies with the specifications of the American Society of Civil Engineers (ASCE) and is commonly used in railway infrastructure projects in North America and other regions that follow ASCE standards.


Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.


Kingrail Parts’ 60-pound rails are produced in accordance with the American ASCE standard ASTM A1 and are most commonly used in North America. The weight of our 60-pound rails per meter is 29.8kg, which is equivalent to 29.8kg/m.



Customization Options

Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.

Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.


Specifications

Material: 700/Q235/55Q

Weight: 29.76kg/m

Length: 6m/8m/10m

Standard: ASTM A1/AREMA



Dimensions

Type

Head Width(mm)

Rail Height(mm)

Base Width(mm)

Web Thickness(mm)

Weight(kg/m)

60 LBS Rail(ASCE 60)

60.32

107.95

107.95

12.3

29.76

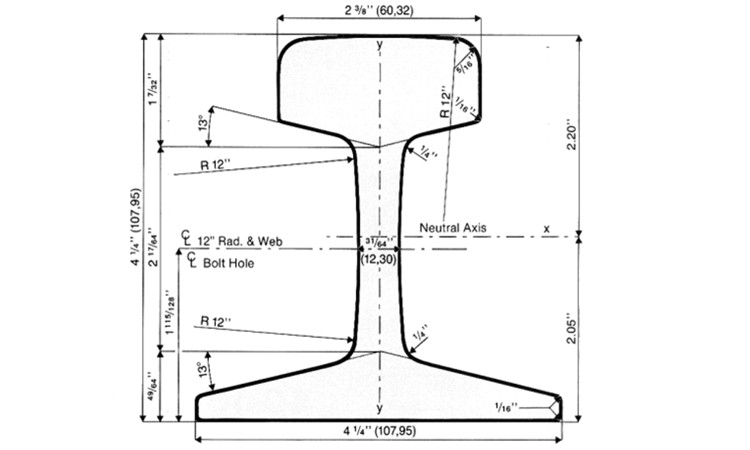

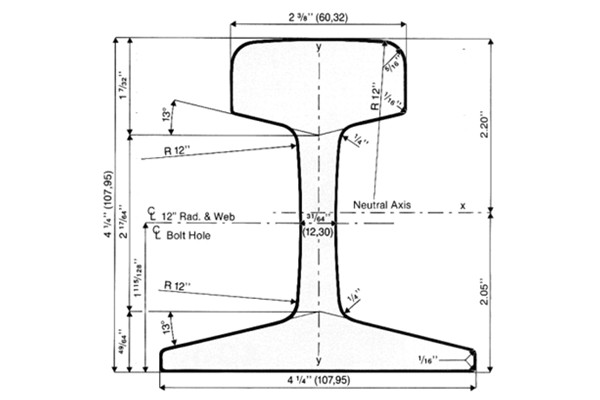

Drawing
