Australian Standard 89KG Rail is a heavy duty rail designed for the Australian railway system and complies with AS1085 standards. The rail weighs 89.81kg per meter and is ideal for high load applications and heavy cargo transportation.
89KG rail is commonly used in applications such as port and dock cranes.
Kingrail Parts is a trusted rail product manufacturer with more than 20 years of experience in providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable partnerships with customers in more than 30 countries.
Kingrail Parts is a trusted professional rail supplier, we can produce rails that meet Australian standards.
Custom Options
Rail Processing: Pre-drilled bolt holes, bevel cutting and welding services for quick installation.
Accessories: High-strength fishplates, anti-creep anchors and crane rail clamps to provide a complete rail solution.
Specifications
|
Size |
Dimension(mm) |
Weight (kg/m) |
Length |
Material |
|||
|
Head(mm) |
Height(mm) |
Bottom(mm) |
Web(mm) |
||||
|
89KG |
102 |
114 |
178 |
51 |
89.81 |
8-25 |
900A/1100 |

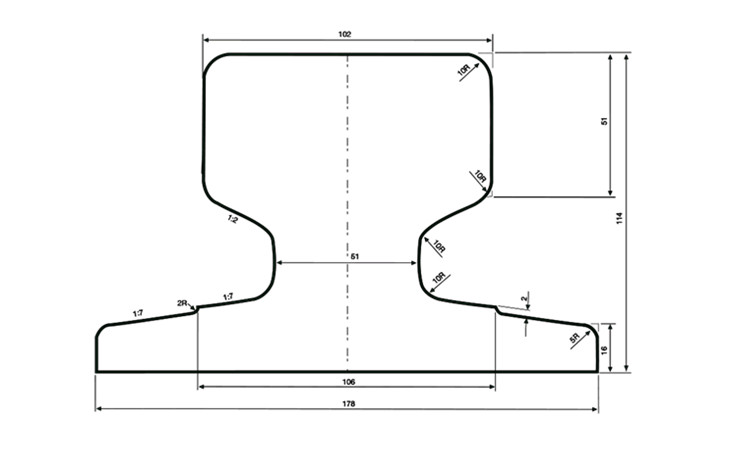

Drawings
Get More Services
Please contact us for more information and a quote.
