ASCE40 lb rails are used for mining railway lines. The material is 700, the hardness is R220 or above, and the length can be 6-10 meters.
ASCE40 rail is a type of railroad track that complies with the specifications of the American Society of Civil Engineers (ASCE) and is commonly used in railway infrastructure projects in North America and other regions that follow ASCE standards.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
We can provide high quality ASCE40 lb rails, if you have any questions about ASCE40 lb rails, welcome to contact us.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification
Rail Type: 40 AS
Section Number: 4040
Nominal Weight: 40 lbs/yd
Standard Length: 20', 30, & 40'
Standard Drilling: 2-1/2" x 5" with 7/8" dia. holes
Splice Bar Length: 20"
Splice Bar Weight: 8 lbs/pr with hardware: 11 lbs/pr
Track Bolt: 3/4" x 3-1/2"
Dimensions
|
Model |
DIMENSION |
Weight |
Material |
Length |
|||
|
A(mm) |
B(mm) |
C(mm) |
t(mm) |
(KG/M) |
(m/PC) |
||
|
ASCE 40 |
47.62 |
88.9 |
88.9 |
9.92 |
19.84 |
700 |
6-12 |

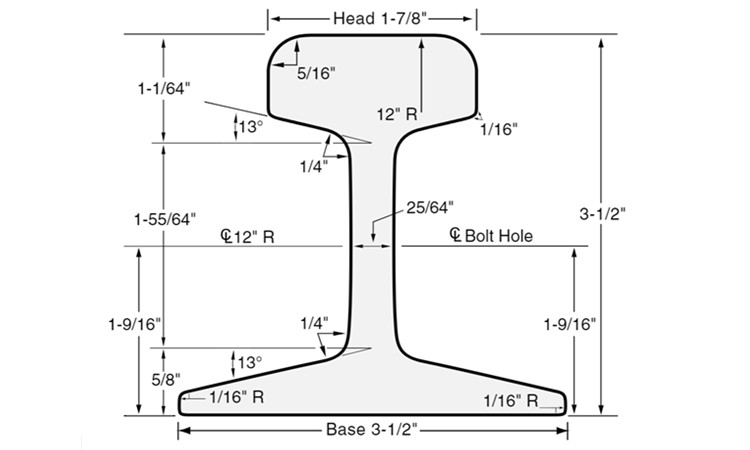

Drawing
