50E1 rail is a heavy-duty rail that complies with the European standard EN 13674-1.
50E1 rail is suitable for various railway applications, including: trunk roads, feeder lines, high-speed railways, urban rail transit, ports and mines.
European standard rail is a common type of rail, produced according to the EN 13674-1-2003 standard. Usually, European standard rail is mainly made of R260/R350HT material. The specifications of European standard rail include: 49 E1, 50 E2, 50 E4, 54 E1, etc. The main length of European standard rail is 12-25 meters.
Kingrail Parts is a trusted rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperation with customers in more than 30 countries.
Kingrail Parts is a China Ministry of Railways approved rail product manufacturer specializing in high quality rails, including 50E1 rails.
Customization Options
Rail Processing: Pre-drilled bolt holes, beveling and welding services for quick installation.
Accessories: High strength fishplates, anti-creep anchors and crane rail clamps for a complete rail solution.
Specifications
|
Product Name |
EN Standard Steel Rail |
||||||
|
Standard |
EN 13674-1-2003 |
||||||
|
Model |
DIMENSION |
Weight |
Material |
Length |
|||
|
A(mm) |
B(mm) |
C(mm) |
t(mm) |
(KG/M) |
(m/PC) |
||
|
50E1 |
65 |
153 |
134 |
15.5 |
50.37 |
R260/R350HT |
12-25 |

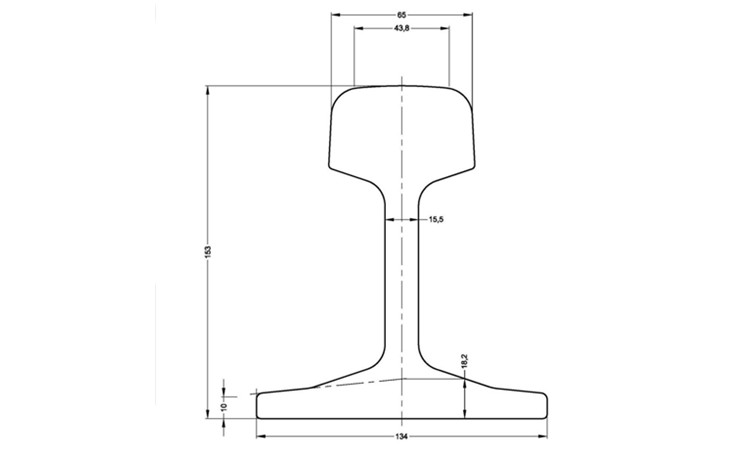

Drawings
