TR50 Rail is ASTM A759 100 RE Rail, which is used in North and South American markets. Lengths range from 39 to 80 feet, and materials are SS and HH.
AREMA Standard 100lb 100RE TR50 Rail is mainly used as railway track, crane rail, underground mining track, factory, port, etc.
Kingrail Parts is a trusted rail product manufacturer with more than 20 years of experience in providing materials and solutions to the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable partnerships with customers in more than 30 countries.
Kingrail Parts is a trusted professional rail supplier, we can supply various sizes of American standard rails. Such as: TR-45 Rail, TR-50 Rail, TR-57 Rail, TR-68 Rail, etc.
Customization Options
Rail Processing: Pre-drilled bolt holes, bevel cutting and welding services for quick installation.
Accessories: high-strength fishplates, anti-creep anchors and crane rail clamps provide a complete rail solution.
Specifications
|
Type |
Height (mm) |
Bottom Width (mm) |
Head Width (mm) |
Middle Thickness (mm) |
Length (m) |
Weight (kg/m) |
|
TR-50 (100 RE) |
152.4 |
136.5 |
68.2 |
14.3 |
12-36 |
50.35 |

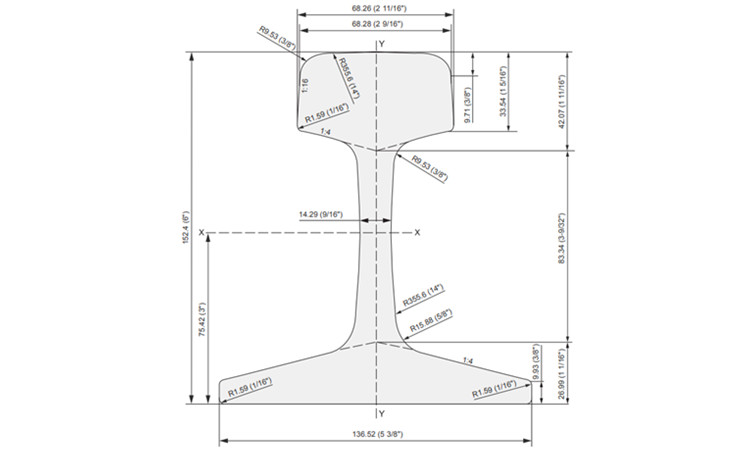

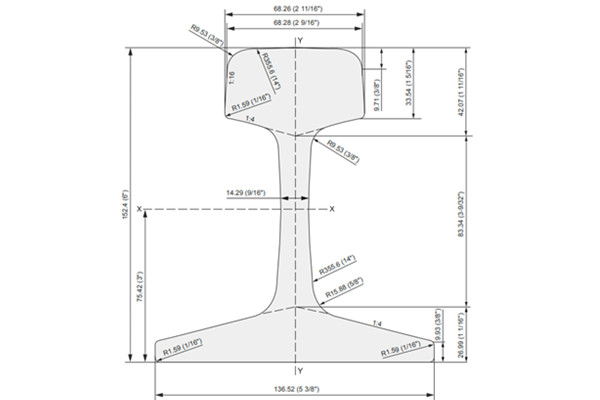

Drawings
