GB 22KG rail is a medium-sized rail that meets the national standards of China. Its weight is 22.3 kg/m and is mainly used in light rail systems, industrial rails and mine transportation. 22KG rails are made of high-quality Q235 or 55Q steel
Kingrail Parts can provide GB standard rails in various sizes. Such as: P8 rail, P12 rail, P15 rail, P18 rail, P22 rail, P24 rail, P30 rail, P38 rail, P43 rail, P50 rail, etc.
Kingrail Parts is a trusted rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict quality management specifications for rail products and have established reliable cooperation with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, bevel cutting and welding services for quick installation.
Accessories: high-strength fishplates, rail anchors and rail clips, providing a complete rail solution.
Specifications
|
Parameters |
|||
|
Type |
weight (kg/m) |
material |
length (m) |
|
22kg |
22.30 |
Q235/55Q |
6-10m |
|
rail height (mm) |
bottom width (mm) |
head width (mm) |
web thinkness (mm) |
|
93.66 |
93.66 |
50.8 |
10.72 |

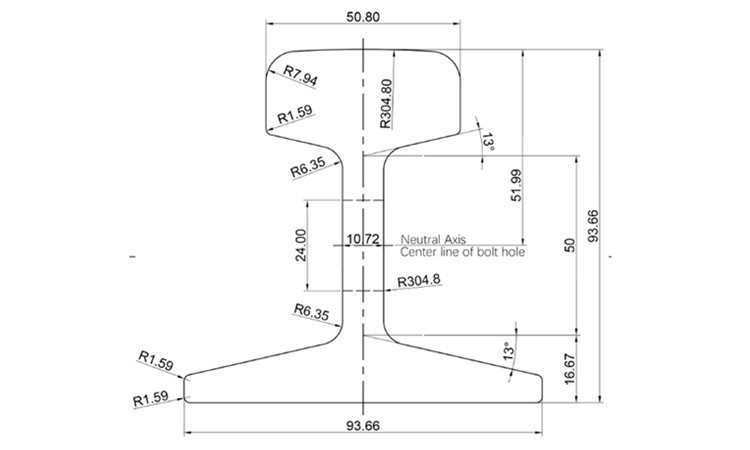

Drawings
