ASCE 25 rails are the lightest type of ASCE rails, weighing 25 pounds per yard (25lb/yd). They are primarily used in low-speed applications, such as light rail transit systems and industrial rails.
ASCE 25 rail uses a symmetrical I-beam (T-beam) section and is designed for light rail applications. Its dimensions are as follows: head width 38.1 mm, height 69.85 mm, bottom width 69.85 mm, web thickness 7.54 mm. Theoretical weight is approximately 12.4 kg per meter.
As the largest rail manufacturer in China, we can provide high-quality American Standard (ASCE) rails in various sizes to meet your requirements.
25LB/YD rail is a type of light rail, we also have 18LB/YD rail, 30LB/YD rail, 45LB/YD rail, 60LB/YD rail, TR45 rail, TR50 rail, 115RE rail, 136RE rail in stock.
Kingrail Parts is a trusted rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperation with customers in more than 30 countries.
Customized Options
Rail Processing: Pre-drilling, bevel cutting and welding services for fast installation.
Accessories: High-strength fishplates, rail anchors and rail clamps, providing complete rail solutions.
Specifications
|
size |
Dimension(mm) |
weight |
Material |
Length (m) |
|||
|
Head(mm) |
Height(mm) |
Bottom(mm) |
Web(mm) |
||||
|
ASCE 25 |
38.1 |
69.85 |
69.85 |
7.54 |
12.4 |
700 |
6-12 |

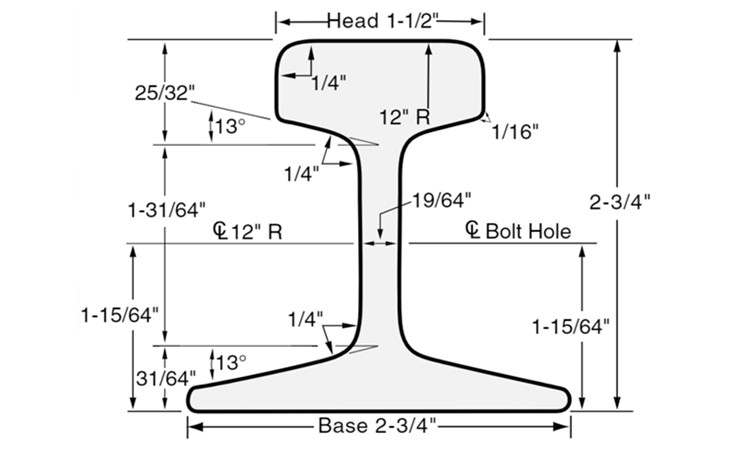

Drawings
Get more help
Please contact us for more information and quotes.
