ASCE 40 rail, also known as 40 lb rail, is a standard rail type that complies with the specifications of the American Railway Engineering and Maintenance Association (AREMA). "40" means weight per yard, i.e. 40 lbs/yard. It is mainly used in railway systems and industrial crane rails for medium speeds and medium loads.
ASCE rails are designed for light overhead cranes, mining rails, automated warehouse retrieval systems and other industrial applications.
Kingrail Parts can supply high-quality, competitively priced heavy-duty rails. ASCE40 rail/40 lb rail belongs to one of the light-duty rails.
Kingrail Parts is a trusted rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperation with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilling, bevel cutting and welding services for quick installation.
Accessories: high-strength fishplates, rail anchors and rail clamps provide a complete rail solution.
Specifications
|
Size |
Rail height(mm) |
Bottom Width(mm) |
Head Width(mm) |
Web Thickness(mm) |
Weight(kg/m) |
|
ASCE40 |
88.9 |
88.9 |
47.6 |
9.90 |
19.84 |

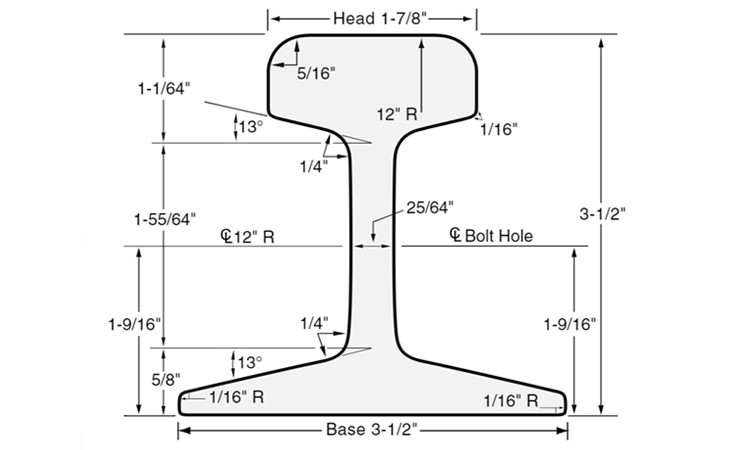

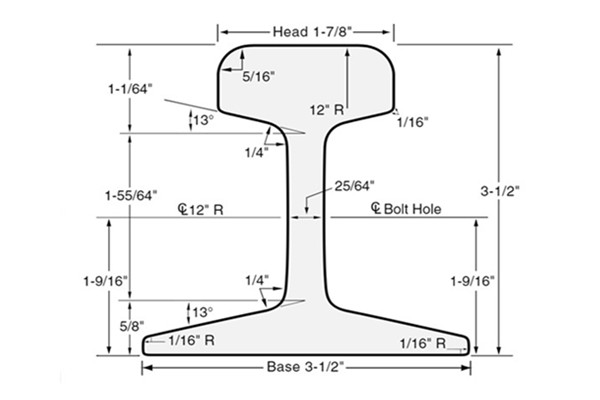

Drawings
