ASCE 60/60lbs rail model is manufactured according to the American standard ASCE. It is suitable for light rail applications. It is a T-section rail (flat bottom rail) with a mass of 29.76 kg per meter, equivalent to 60 pounds per yard, hence its name.
As the largest rail manufacturer in China, we can provide high-quality American standard (ASCE) rails in various sizes to meet your requirements.
60 LB/YD rail is a type of light rail, we also have 18LB/YD rail, 25LB/YD rail, 30LB/YD rail, 40LB/YD rail, 45LB/YD rail, 50LB/YD rail, TR45 rail, TR50 rail, 115RE rail, 136RE rail in stock.
Kingrail Parts is a trusted rail product manufacturer with over 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperation with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilling, bevel cutting and welding services for quick installation.
Accessories: High-strength fishplates, rail anchors and rail clamps, providing a complete rail solution.
Specifications
|
Model |
DIMENSION |
Weight |
Material |
Length |
|||
|
A(mm) |
B(mm) |
C(mm) |
t(mm) |
(KG/M) |
(m/PC) |
||
|
ASCE 60 |
60.32 |
107.95 |
107.95 |
12.3 |
29.76 |
700 |
6-12 |

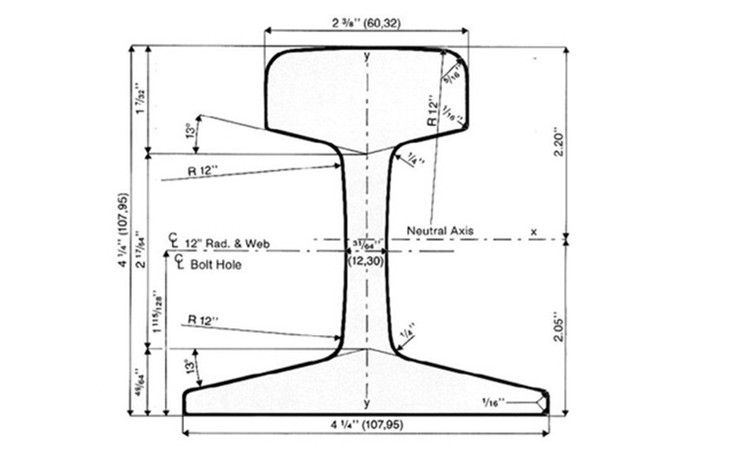

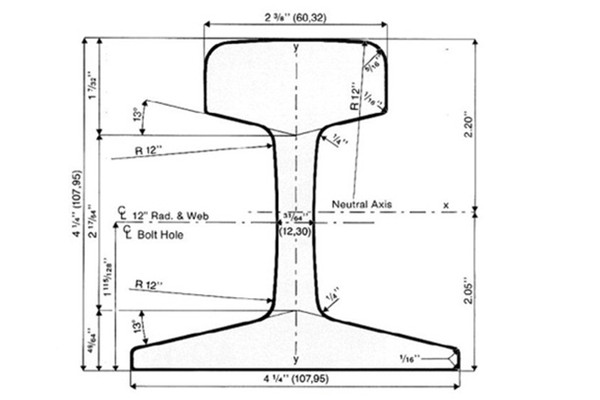

Drawings
