18 lbs/yard rail is a type of mining rail, equivalent to the national standard P9 kg rail. It is mainly used in mining track construction, and the material is mostly Q235B.
ASCE rails are designed for light overhead cranes, mining tracks, automated warehouse retrieval systems and other industrial applications.
Kingrail Parts can supply high-quality, competitively priced heavy rails. ASCE18 rails/18 lbs rails are one of the light rails.
Kingrail Parts is a trusted rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable partnerships with customers in more than 30 countries.
Customized Options
Rail Processing: Pre-drilling, bevel cutting and welding services for quick installation.
Accessories: High-strength fishplates, rail anchors and rail pressure plates, providing a complete rail solution.
Specifications
|
Parameters |
|||
|
Type |
weight (kg/m) |
material |
length (m) |
|
12kg(7.2) |
7.1~7.2 |
Q235 |
6m |
|
rail height (mm) |
bottom width (mm) |
head width (mm) |
web thinkness (mm) |
|
67 |
55.5 |
30 |
4~5 |

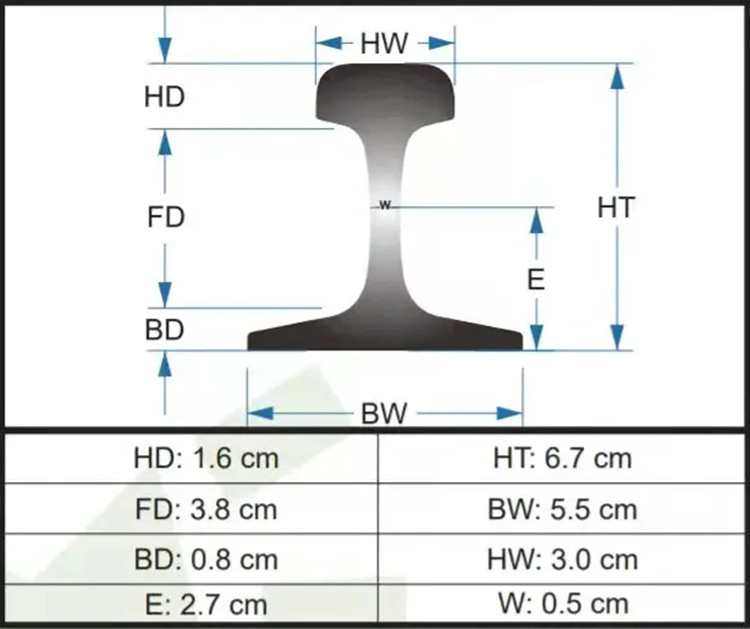

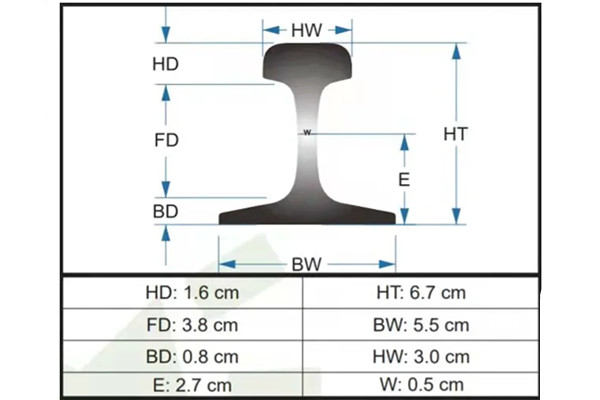

Drawings
Get More Help
Please contact us for more information and quotes.
