90 lbs rail is defined by the Association of American Railroads (ARA). The standard set by ARA is that rail weights range from 60 lbs/yd (29.8 kg/m) to 100 lbs/yd (49.6 kg/m) in 10 lbs/yd (4.96 kg/m) increments. 90 lbs rail is also the type of rail recommended by the American Railway Engineering Association (AREA). This rail is mainly sold in the North American market.

ASCE rails are designed for light overhead cranes, mining rails, automated warehouse retrieval systems, and other industrial applications.

Kingrail Parts can supply high-quality, competitively priced heavy-duty rails. ASCE90 rails / 90 lbs rails are one of the light-duty rails.

Kingrail Parts is a trusted rail product manufacturer with more than 20 years of experience in providing materials and solutions to the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.

Customized Options

Rail Processing: Pre-drilling, bevel cutting and welding services for quick installation.

Accessories: High-strength fishplates, rail anchors and rail clamps to provide a complete rail solution.

Specifications

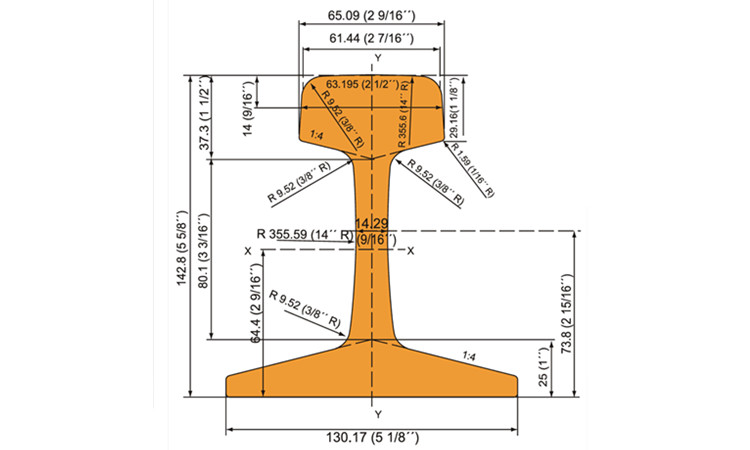

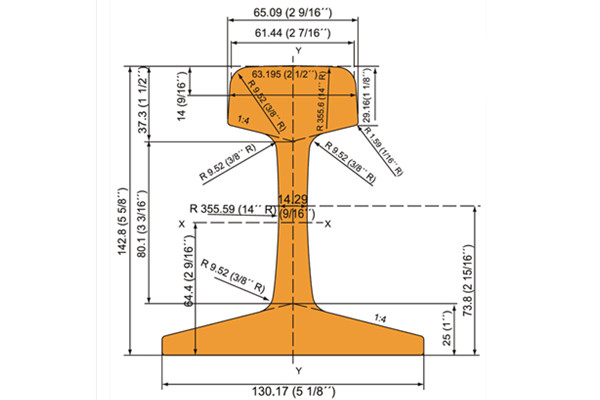

Drawings

Get More Help

Please contact us for more information and quotes.
