115RE rail conforms to the standard rail section shape of the American Railway Engineering and Maintenance Association (AREMA). Its nominal weight is 56.9 kg/m, equivalent to 115 pounds per yard. Therefore, it is also called 115 lbs rail. As a heavy rail, it is mainly used for mine tracks due to its high strength. 115RE rail is heat treated to control the hardness and strength of the steel.
ASCE rails are designed for light overhead cranes, mining rails, automated warehouse retrieval systems, and other industrial applications.
Kingrail Parts can supply high-quality, competitively priced heavy rails. ASCE115 rails/115 lbs rails belong to one of the light rails.
Kingrail Parts is a trusted rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable partnerships with customers in more than 30 countries.
Custom Options
Rail Processing: Pre-drilled, beveled and welded for quick installation.
Accessories: High-strength fishplates, rail anchors and rail clamps for a complete rail solution.
Specifications
|
Size |
Head (mm) |
Height (mm) |
Base (mm) |
Web (mm) |
Nominal weight (kg/m) |
Material |
Length （m） |
|
115RE(115lb) |
69.06 |
168.28 |
139.7 |
15.88 |
56.9 |
900A/1100 |
12-25 |

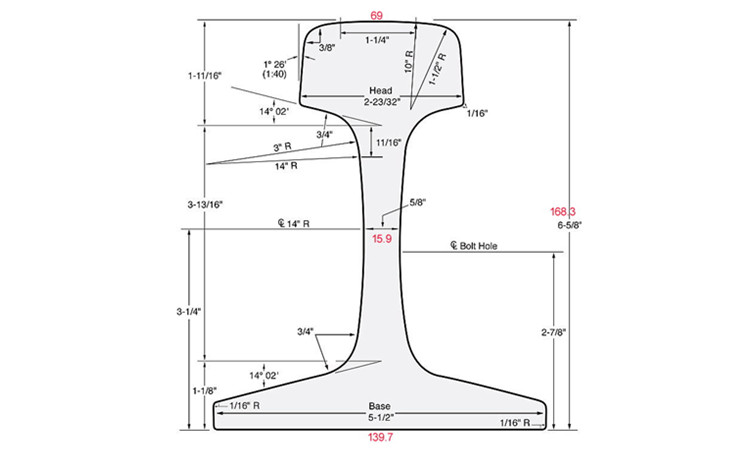

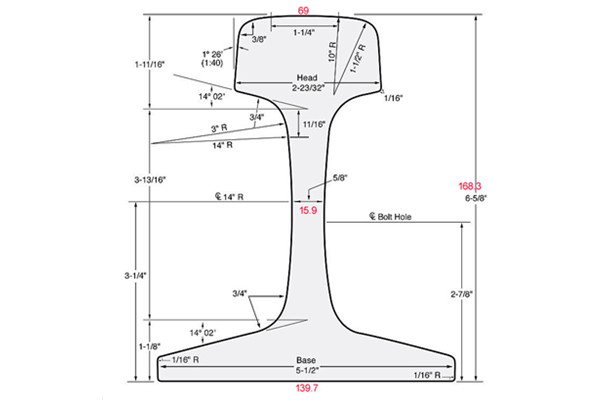

Drawings
Get More Help
Please contact us for more information and a quote.
