CR175 Crane Rail is a heavy duty rail used for bridge cranes and gantry cranes in industrial applications. The "CR" in the name stands for "Crane Rail" and the "175" refers to the weight of the rail in pounds per yard. CR175 rails have a high load-bearing capacity and are often used in applications where large, heavy objects need to be lifted and transported.
As the largest rail manufacturer in China, we can provide high-quality American Standard (ASCE) rails in various sizes to meet your requirements.
175 LB/YD rail is a type of heavy rail, and we also have 25LB/YD rail, 30LB/YD rail, 40LB/YD rail, 45LB/YD rail, 50LB/YD rail, 60LB/YD rail, TR45 rail, TR50 rail, 115RE rail, 136RE rail in stock.
Kingrail Parts is a trusted rail product manufacturer with over 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperation with customers in more than 30 countries.
Customized Options
Rail Processing: Pre-drilling, bevel cutting and welding services for fast installation.
Accessories: High-strength fishplates, rail anchors and rail clamps, providing a complete rail solution.
Specifications
|
Model |
DIMENSION |
Weight |
Material |
Length |
|||
|
A(mm) |
B(mm) |
C(mm) |
t(mm) |
(KG/M) |
(m/PC) |
||
|
175LBs |
109.86 |
152.4 |
152.4 |
38.1 |
86.8 |
900A/1100 |
12-25 |

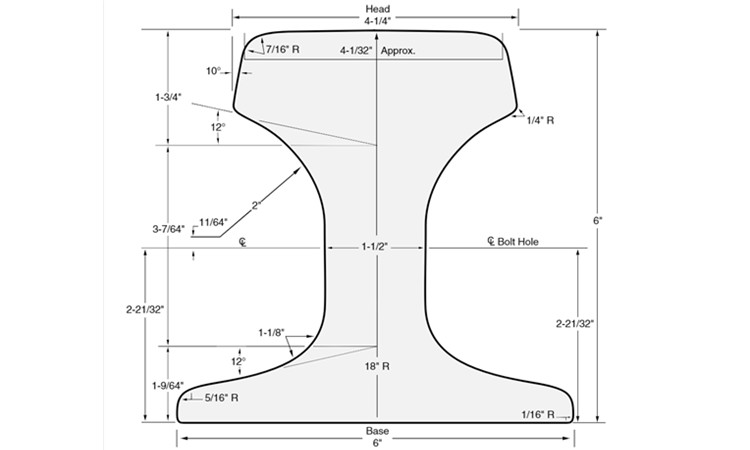

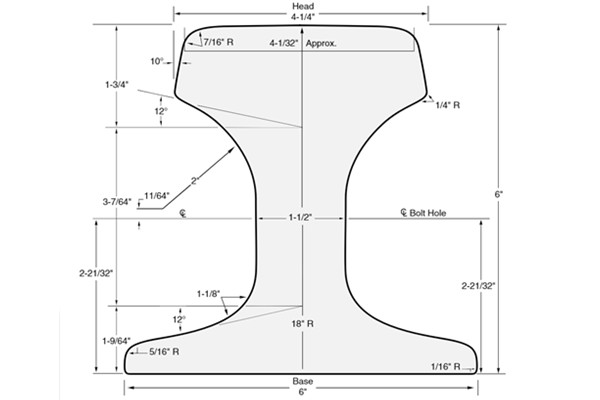

Drawings
Get More Help
Please contact us for more information and quotes.
