136RE rail, also known as TR68 rail and 136 lbs rail, is a heavy rail designed according to AREMA standards with a nominal weight of 67.5 kg/m (136 lbs/yd). It is widely used on freight-intensive routes such as mainline railways, mining operations, and industrial corridors.
As the largest rail manufacturer in China, we can provide high-quality American Standard (ASCE) rails in various sizes to meet your requirements.
136 LB/YD rail is a type of heavy rail, we also have 25LB/YD rail, 30LB/YD rail, 40LB/YD rail, 45LB/YD rail, 50LB/YD rail, 60LB/YD rail, TR45 rail, TR50 rail, 115RE rail, 136RE rail in stock.
Kingrail Parts is a trusted rail product manufacturer with over 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperation with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilling, bevel cutting and welding services for fast installation.
Accessories: High-strength fishplates, rail anchors and rail clamps to provide a complete rail solution.
Specifications
|
Profile |
Standard |
Dimensions mm |
Section S |
Mass m |
||||
|
H |
B |
C |
D |
E |
cm² |
kg/m |
||
|
American standard |
||||||||
|
136RE (TR68) |
AREMA |
185,70 |
152,40 |
74,60 |
49,20 |
17,50 |
85,90 |
67,50 |

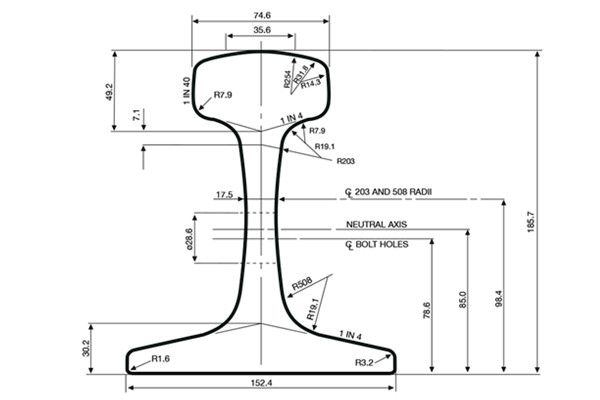

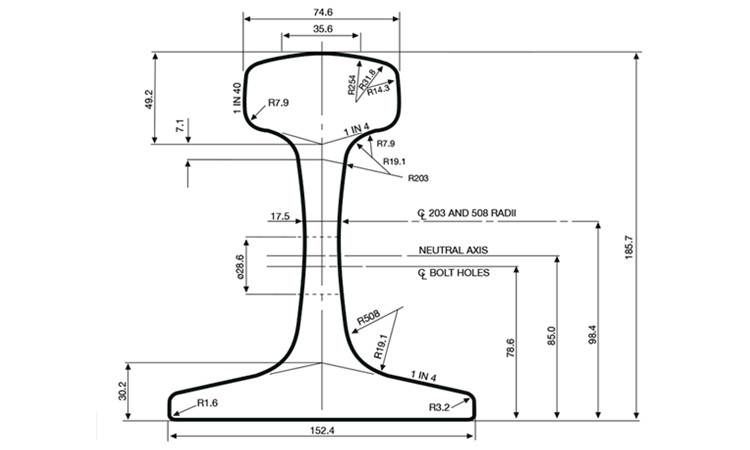

Drawings
