The steel rails, also known as rails and railway track, are the main components of railway rails. Its role is to guide the wheels of the locomotive, bear great pressure on the wheels, and keep the railway transportation stable. The steel rail must provide a continuous, smooth and minimum rolling surface for the wheels. On the electrified railway or automatic occlusion section, the steel rail can also be used as the rail circuit.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
We can provide high quality Qu80 rails, if you have any questions about Qu80 rails, welcome to contact us.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification:
Material: U71MN
Weight: 63.69kg/m
Length: 12M
Execution standard: YB/T5055-2014
| QU80 Rail Parameters | |||
| Rail Type | Weight(Kg/m) | Material | Length(m) |
| QU80 | 63.69 | U71Mn | 12 |
| Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
| 80 | 130 | 130 | 32 |

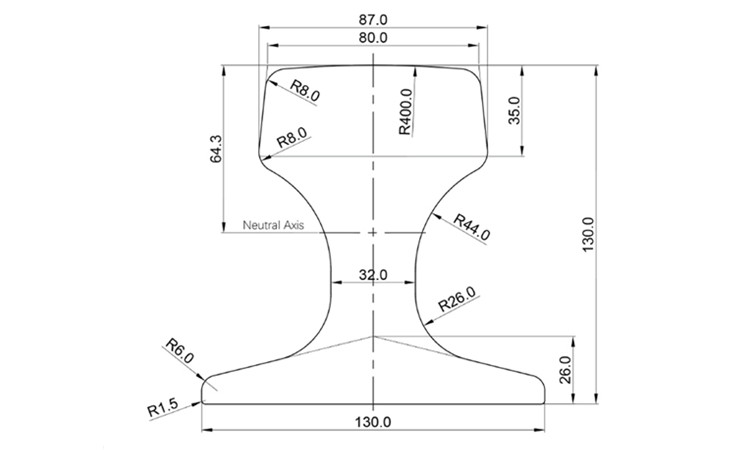

Drawing:
We supply and export QU80 rail at high quality and competitive price. The QU80 rail is one of the crane rails. If you need any QU80 rail, please contact us.
