The crane rail A75 is made in line with the European standard DIN 536 P1: 1991, and the mass is 56,20 kg/m.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification:
Type: A75 Crane Rail
Material: 700/900A/1100
Weight: 56.2kg/m
Length: 10-12m
Standard: DIN536
Tipo de raíl | Standard | Dimensiones mm | Sección S | Masa m | ||||
---|---|---|---|---|---|---|---|---|
H | B | C | E | cm² | kg/m | |||
NORMA EUROPEA DIN 536 P1:1991 | ||||||||
A75 | DIN 536 | 85 | 200 | 75 | 45 | 71,60 | 56,20 |

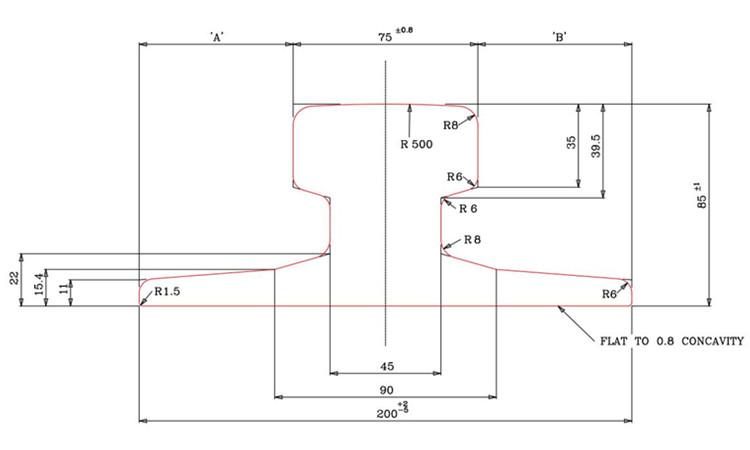

Drawing:
