The A150 rail is one of the models that meet the rail standard of the DIN536. The material is 900 A, 12 meters in length, and the unit weight is 150.3 kg/m
The A150 crane rail is mainly used for the laying of the transportation road of overweight container transportation such as ports and docks, and the laying of large machinery and equipment transportation lines.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Dimensions:
A150 steel crane rail, 150mm width, 150mm height, 220mm bottom width, 80mm width of the abdomen
| Tipo de raíl | Standard | Dimensiones mm | Sección S | Masa m | ||||
|---|---|---|---|---|---|---|---|---|
| H | F | K | S | cm² | kg/m | |||
| NORMA EUROPEA DIN 536 P1:1991 | ||||||||
| A150 | DIN 536 | 150 | 220 | 150 | 80 | 191,40 | 150,30 | |

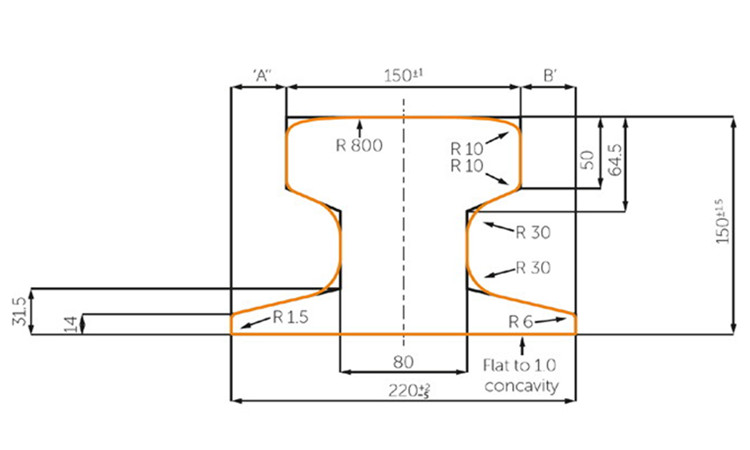

Drawings:
Contact us
Please contact us for more information and quotations.
