The A150 rail is a crane rail for overhead gantry and floor-mounted cranes for manufacturers such as ports, docks, shipyards, warehouses and other manufacturers.
The A150 rail meets the European DIN standard. This standard is applicable to the hot-rolled flat bottom crane rails. The minimum tensile strength required by this standard is 690N/mm 2.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification:
| Size | Head (mm) | Height (mm) | Base (mm) | Web (mm) | Nominal weight (kg/m) | Material | Length （m） |
| A150 | 150 | 150 | 220 | 80 | 150.3 | 700/900A/1100 | 10-12 |
Chemical composition:
| Grade | Standard | C | Si | Mn | P | S | V |
| 690 | DIN536-1 Min | 0.40 | – | 0.80 | – | – | – |
| Max | 0.60 | 0.35 | 1.20 | 0.045 | 0.045 | – | |
| 880 | DIN536-1 Min | 0.60 | – | 0.80 | – | – | – |
| Max | 0.80 | 0.50 | 1.30 | 0.045 | 0.045 | – |
Strong requirements:
| Grade | Minimum yield(Mpa) | Minimum UTS(Mpa) | Hardness(HBN) |
| 690 | 355 | 690 | 204 |
| 880 | 440 | 880 | 260 |

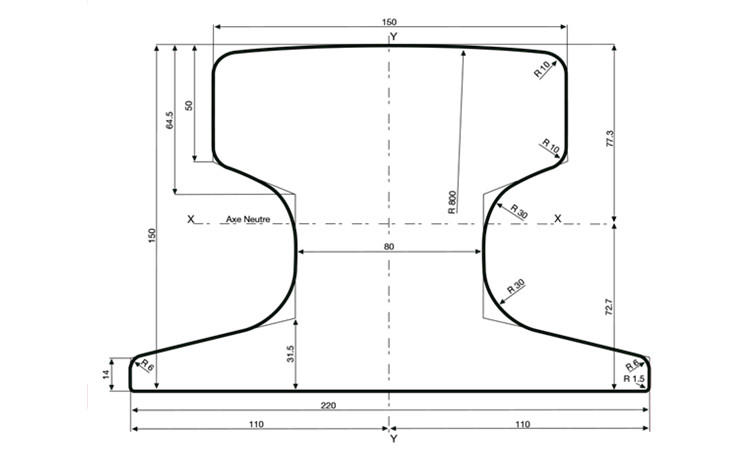

Drawing:
